SDO HMI 2011-11-13 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.68 | 104.51 | 36.21 | 235.64 | -17.53 | 105.73 | 75.45 | 251.21 | 0.9742 | 81.7 | 68.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-13 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

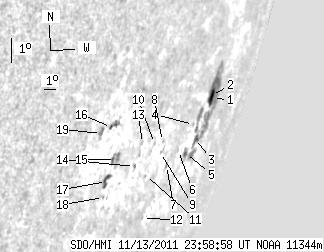

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.32 | 59.18 | 6.14 | 155.42 | -16.84 | 108.07 | 77.79 | 252.22 | 0.9832 | -288.7 | 62.5 | |
| 4.04 | -1.00 | 10.39 | -1.00 | -16.73 | 107.77 | 77.49 | 252.30 | 0.9823 | 366.3 | 999999 | |
| 2.41 | -1.00 | 6.09 | -1.00 | -18.05 | 107.34 | 77.05 | 250.91 | 0.9814 | 281.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 1.81 | -17.56 | 106.39 | 76.10 | 251.29 | 0.9781 | 444.0 | 492.4 | |
| 2.06 | 8.60 | 4.90 | 21.43 | -18.49 | 106.57 | 76.28 | 250.38 | 0.9791 | 513.0 | 343.6 | |
| 0.00 | 0.95 | 0.00 | 2.08 | -18.33 | 105.46 | 75.17 | 250.39 | 0.9752 | 272.0 | 255.8 | |
| 0.00 | 1.81 | 0.00 | 3.72 | -18.76 | 104.54 | 74.25 | 249.83 | 0.9719 | 164.0 | 128.9 | |
| 0.00 | 0.69 | 0.00 | 1.29 | -17.93 | 103.14 | 72.85 | 250.49 | 0.9658 | 222.0 | 257.5 | |
| 0.00 | 0.77 | 0.00 | 1.47 | -18.28 | 103.31 | 73.02 | 250.15 | 0.9667 | 286.0 | 233.3 | |
| 0.00 | 1.29 | 0.00 | 2.31 | -17.95 | 102.32 | 72.03 | 250.35 | 0.9622 | 380.0 | 360.0 | |
| 0.00 | 0.95 | 0.00 | 1.73 | -18.96 | 102.46 | 72.17 | 249.32 | 0.9635 | 391.0 | 354.0 | |
| 0.00 | 1.03 | 0.00 | 2.08 | -20.40 | 103.83 | 73.54 | 248.05 | 0.9702 | -289.0 | -248.7 | |
| 0.00 | 1.12 | 0.00 | 1.87 | -17.88 | 101.07 | 70.78 | 250.22 | 0.9563 | 372.0 | 311.8 | |
| 0.00 | 1.46 | 0.00 | 2.45 | -18.60 | 100.99 | 70.70 | 249.46 | 0.9565 | -176.0 | -55.4 | |
| 0.00 | 8.95 | 0.00 | 13.49 | -18.28 | 98.96 | 68.67 | 249.46 | 0.9460 | 338.0 | 152.0 | |
| 1.03 | 5.25 | 1.46 | 7.50 | -17.21 | 97.76 | 67.47 | 250.37 | 0.9383 | -550.0 | -327.4 | |
| 4.82 | 6.19 | 7.23 | 9.31 | -18.96 | 98.77 | 68.48 | 248.71 | 0.9457 | -373.2 | -119.2 | |
| 0.00 | 0.77 | 0.00 | 1.18 | -19.48 | 98.98 | 68.69 | 248.21 | 0.9473 | -391.0 | -407.8 | |
| 0.00 | 4.73 | 0.00 | 6.50 | -17.36 | 97.06 | 66.78 | 250.08 | 0.9345 | -756.0 | -568.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
