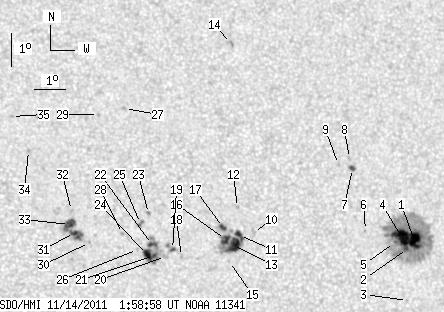

SDO HMI 2011-11-14 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.14 | 297.91 | 43.12 | 164.44 | 9.64 | 54.34 | 25.15 | 286.46 | 0.4376 | -403.7 | -276.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.53 | 174.03 | 6.52 | 98.32 | 9.39 | 57.58 | 28.39 | 284.03 | 0.4855 | -1132.9 | -410.1 | |
| 0.95 | -1.00 | 0.53 | -1.00 | 9.15 | 57.32 | 28.13 | 283.65 | 0.4810 | -963.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 7.61 | 57.20 | 28.01 | 280.49 | 0.4754 | -720.0 | -578.1 | |
| 15.14 | -1.00 | 8.54 | -1.00 | 9.52 | 57.15 | 27.96 | 284.47 | 0.4795 | -1297.7 | 999999 | |
| 0.77 | -1.00 | 0.44 | -1.00 | 9.34 | 56.89 | 27.71 | 284.21 | 0.4752 | -983.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 9.72 | 55.94 | 26.76 | 285.42 | 0.4622 | -734.0 | -586.4 | |
| 2.75 | 2.92 | 1.54 | 1.63 | 11.59 | 55.68 | 26.49 | 289.47 | 0.4654 | -918.1 | -827.5 | |
| 0.00 | 1.89 | 0.00 | 1.06 | 11.89 | 55.61 | 26.42 | 290.14 | 0.4657 | -690.0 | -523.8 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 11.72 | 55.22 | 26.03 | 290.02 | 0.4593 | -833.0 | -628.7 | |
| 0.00 | 2.58 | 0.00 | 1.40 | 9.74 | 52.23 | 23.04 | 287.46 | 0.4061 | -721.0 | -531.3 | |
| 4.73 | 36.65 | 2.55 | 19.73 | 9.66 | 51.76 | 22.58 | 287.56 | 0.3987 | -784.6 | -770.1 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 10.50 | 51.76 | 22.57 | 289.58 | 0.4023 | -693.0 | -517.8 | |
| 11.87 | -11.00 | 6.39 | -11.00 | 9.37 | 51.55 | 22.36 | 286.98 | 0.3942 | -1093.5 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.47 | 15.44 | 52.04 | 22.85 | 300.35 | 0.4356 | 912.0 | 724.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 8.90 | 51.38 | 22.20 | 285.90 | 0.3898 | -668.0 | -477.1 | |
| 4.82 | -11.00 | 2.59 | -11.00 | 9.55 | 51.30 | 22.11 | 287.59 | 0.3911 | -1099.9 | 999999 | |
| 3.01 | 3.36 | 1.62 | 1.80 | 9.91 | 51.26 | 22.07 | 288.51 | 0.3921 | -1033.9 | -902.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 9.07 | 49.85 | 20.66 | 287.36 | 0.3666 | 517.0 | 348.5 | |
| 1.81 | 4.73 | 0.96 | 2.51 | 9.29 | 49.57 | 20.38 | 288.13 | 0.3633 | 656.9 | 603.4 | |
| 0.00 | 2.49 | 0.00 | 1.32 | 9.08 | 49.33 | 20.15 | 287.75 | 0.3587 | -227.0 | -213.4 | |
| 1.20 | 26.24 | 0.64 | 13.88 | 9.12 | 48.98 | 19.80 | 288.12 | 0.3534 | 848.6 | 561.7 | |
| 3.79 | -21.00 | 2.00 | -21.00 | 9.45 | 48.94 | 19.75 | 289.05 | 0.3543 | 831.0 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 10.38 | 48.87 | 19.68 | 291.60 | 0.3579 | -861.0 | -801.1 | |
| 5.76 | -21.00 | 3.05 | -21.00 | 9.15 | 48.76 | 19.58 | 288.38 | 0.3501 | 1108.7 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.68 | 10.08 | 48.60 | 19.41 | 291.06 | 0.3521 | -988.0 | -838.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 9.31 | 48.45 | 19.27 | 289.06 | 0.3460 | -630.0 | -362.1 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 13.54 | 48.34 | 19.15 | 300.19 | 0.3706 | 800.0 | 614.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 9.79 | 48.00 | 18.82 | 290.81 | 0.3415 | -987.0 | -717.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 13.37 | 47.48 | 18.30 | 300.84 | 0.3573 | 787.0 | 648.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 9.54 | 46.94 | 17.76 | 291.11 | 0.3239 | 726.0 | 542.5 | |
| 2.49 | 19.61 | 1.30 | 10.24 | 9.85 | 46.49 | 17.30 | 292.49 | 0.3185 | 1062.3 | 818.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 10.51 | 46.43 | 17.24 | 294.48 | 0.3217 | 694.0 | 608.2 | |
| 8.52 | -31.00 | 4.45 | -31.00 | 10.09 | 46.34 | 17.16 | 293.36 | 0.3178 | 1012.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 12.32 | 45.18 | 15.99 | 301.31 | 0.3165 | 846.0 | 685.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 13.35 | 44.71 | 15.52 | 304.86 | 0.3187 | 798.0 | 656.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
