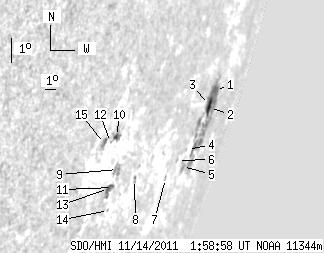

SDO HMI 2011-11-14 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.57 | 100.66 | 35.68 | 255.24 | -16.96 | 106.31 | 77.12 | 251.99 | 0.9798 | 34.2 | 33.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.84 | 66.93 | 8.30 | 195.03 | -16.25 | 108.18 | 78.99 | 252.94 | 0.9865 | 420.2 | 39.0 | |
| 2.15 | -1.00 | 6.28 | -1.00 | -16.77 | 107.99 | 78.81 | 252.40 | 0.9861 | -303.8 | 999999 | |
| 3.61 | -1.00 | 10.24 | -1.00 | -16.66 | 107.66 | 78.48 | 252.48 | 0.9852 | 338.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 2.42 | -18.01 | 106.48 | 77.29 | 250.98 | 0.9822 | 472.0 | 441.6 | |
| 0.00 | 4.56 | 0.00 | 11.89 | -18.55 | 106.56 | 77.38 | 250.45 | 0.9826 | 238.0 | 278.9 | |
| 0.00 | 0.77 | 0.00 | 1.85 | -18.30 | 105.50 | 76.32 | 250.57 | 0.9791 | 270.0 | 245.0 | |
| 0.00 | 1.72 | 0.00 | 3.85 | -18.83 | 104.64 | 75.46 | 249.93 | 0.9764 | 86.0 | 49.2 | |
| 0.00 | 2.58 | 0.00 | 4.59 | -18.67 | 100.95 | 71.76 | 249.57 | 0.9615 | -119.0 | 31.5 | |
| 0.00 | 6.80 | 0.00 | 10.76 | -18.24 | 98.91 | 69.72 | 249.68 | 0.9514 | 328.0 | 131.5 | |
| 1.89 | 3.96 | 2.83 | 5.95 | -17.15 | 97.89 | 68.70 | 250.64 | 0.9451 | -517.8 | -251.0 | |
| 0.95 | 6.45 | 1.52 | 10.20 | -18.82 | 98.98 | 69.79 | 249.09 | 0.9522 | 123.6 | -379.4 | |
| 0.00 | 0.60 | 0.00 | 0.89 | -17.32 | 97.51 | 68.32 | 250.40 | 0.9432 | -451.0 | -438.9 | |
| 4.13 | -11.00 | 6.51 | -11.00 | -18.83 | 98.62 | 69.44 | 249.02 | 0.9505 | -336.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 1.13 | -19.57 | 99.33 | 70.14 | 248.38 | 0.9546 | -144.0 | -188.8 | |
| 0.00 | 4.65 | 0.00 | 6.68 | -17.33 | 97.01 | 67.82 | 250.31 | 0.9404 | -731.0 | -539.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
