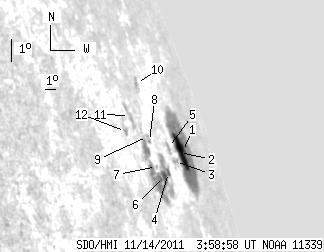

SDO HMI 2011-11-14 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.64 | 193.07 | 66.35 | 467.24 | 19.05 | 106.50 | 78.41 | 288.85 | 0.9789 | -144.6 | -105.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.78 | 98.60 | 24.48 | 277.76 | 19.09 | 108.24 | 80.15 | 288.87 | 0.9847 | 425.9 | 157.7 | |
| 11.87 | -1.00 | 31.51 | -1.00 | 19.09 | 107.68 | 79.59 | 288.87 | 0.9831 | -369.2 | 999999 | |
| 0.00 | 2.50 | 0.00 | 6.03 | 18.86 | 106.59 | 78.50 | 288.65 | 0.9796 | -482.0 | -420.6 | |
| 0.69 | 67.20 | 1.49 | 133.89 | 18.59 | 105.10 | 77.01 | 288.40 | 0.9744 | -428.4 | -469.4 | |
| 0.00 | 3.79 | 0.00 | 8.90 | 19.31 | 106.25 | 78.16 | 289.12 | 0.9785 | -497.0 | -427.2 | |
| 4.30 | -4.00 | 8.87 | -4.00 | 18.50 | 104.41 | 76.32 | 288.32 | 0.9717 | -645.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 2.56 | 18.84 | 103.82 | 75.73 | 288.69 | 0.9694 | -545.0 | -540.7 | |
| 0.00 | 1.29 | 0.00 | 2.60 | 19.61 | 104.00 | 75.91 | 289.48 | 0.9702 | -393.0 | -346.7 | |
| 0.00 | 1.20 | 0.00 | 2.42 | 19.77 | 103.97 | 75.88 | 289.65 | 0.9701 | -477.0 | -424.1 | |
| 0.00 | 4.73 | 0.00 | 10.22 | 21.40 | 105.03 | 76.94 | 291.29 | 0.9744 | -402.0 | -316.5 | |
| 0.00 | 9.46 | 0.00 | 17.59 | 20.50 | 102.71 | 74.62 | 290.45 | 0.9651 | -357.0 | -357.2 | |
| 0.00 | 3.01 | 0.00 | 5.27 | 20.04 | 101.65 | 73.56 | 290.02 | 0.9603 | -23.0 | 8.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
