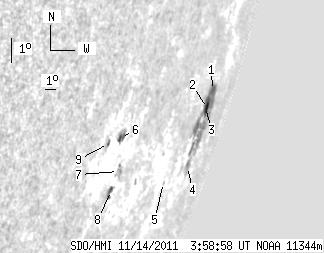

SDO HMI 2011-11-14 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.22 | 83.28 | 40.86 | 237.35 | -16.84 | 106.55 | 78.46 | 252.26 | 0.9837 | 54.7 | -15.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.16 | 55.15 | 17.02 | 180.06 | -16.18 | 108.07 | 79.98 | 253.12 | 0.9890 | 334.9 | -24.6 | |
| 2.06 | -1.00 | 6.79 | -1.00 | -16.75 | 108.12 | 80.03 | 252.55 | 0.9893 | -436.2 | 999999 | |
| 2.75 | -1.00 | 8.59 | -1.00 | -16.66 | 107.61 | 79.52 | 252.59 | 0.9880 | 345.4 | 999999 | |
| 0.00 | 6.80 | 0.00 | 22.14 | -18.55 | 107.78 | 79.68 | 250.71 | 0.9889 | 284.0 | 164.6 | |
| 0.00 | 0.77 | 0.00 | 1.89 | -18.89 | 104.60 | 76.50 | 250.01 | 0.9800 | 59.0 | 36.7 | |
| 3.44 | 8.00 | 5.46 | 12.72 | -17.12 | 97.95 | 69.86 | 250.87 | 0.9511 | -386.8 | -104.7 | |
| 0.00 | 5.59 | 0.00 | 9.33 | -18.23 | 98.77 | 70.68 | 249.85 | 0.9561 | 117.0 | 133.1 | |
| 1.81 | 4.56 | 3.00 | 7.57 | -18.83 | 98.67 | 70.58 | 249.22 | 0.9561 | -338.1 | -351.2 | |
| 0.00 | 2.41 | 0.00 | 3.64 | -17.26 | 97.00 | 68.91 | 250.57 | 0.9462 | -584.0 | -563.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
