SDO HMI 2011-11-14 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.59 | 315.84 | 48.34 | 176.50 | 9.56 | 54.19 | 26.65 | 285.51 | 0.4597 | -473.0 | -193.2 | |
|
previous
or next observation for the same group /

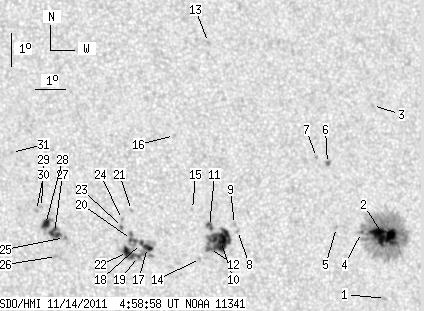

back to the solar disc SDO HMI 2011-11-14 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.84 | 7.60 | 57.27 | 29.73 | 280.06 | 0.5012 | -763.0 | -626.6 | |
| 28.65 | 174.49 | 16.44 | 100.18 | 9.45 | 57.40 | 29.85 | 283.66 | 0.5074 | -1225.7 | -374.7 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 13.38 | 57.43 | 29.89 | 291.11 | 0.5218 | -743.0 | -541.9 | |
| 0.95 | -2.00 | 0.54 | -2.00 | 9.59 | 56.61 | 29.07 | 284.22 | 0.4963 | -790.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 9.76 | 55.77 | 28.23 | 284.89 | 0.4843 | -854.0 | -667.6 | |
| 1.55 | 2.32 | 0.88 | 1.32 | 11.68 | 55.66 | 28.11 | 288.80 | 0.4895 | -977.9 | -870.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 11.87 | 55.30 | 27.76 | 289.37 | 0.4851 | -832.0 | -732.2 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 9.74 | 52.43 | 24.89 | 286.44 | 0.4344 | -524.0 | -407.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 9.93 | 52.35 | 24.81 | 286.89 | 0.4338 | -640.0 | -572.1 | |
| 28.48 | 44.48 | 15.57 | 24.29 | 9.46 | 51.85 | 24.31 | 286.10 | 0.4244 | -1025.8 | -919.5 | |
| 3.44 | -10.00 | 1.88 | -10.00 | 9.88 | 51.52 | 23.98 | 287.27 | 0.4210 | -911.4 | 999999 | |
| 1.12 | -10.00 | 0.61 | -10.00 | 9.23 | 51.47 | 23.93 | 285.77 | 0.4178 | -1141.8 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.86 | 15.42 | 52.05 | 24.50 | 298.79 | 0.4582 | 808.0 | 599.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 8.94 | 51.15 | 23.61 | 285.26 | 0.4119 | -786.0 | -519.1 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 10.40 | 51.00 | 23.46 | 288.80 | 0.4154 | -844.0 | -579.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 12.63 | 50.60 | 23.06 | 294.18 | 0.4207 | 708.0 | 573.8 | |
| 3.96 | 49.64 | 2.12 | 26.59 | 9.30 | 49.45 | 21.91 | 287.15 | 0.3870 | 772.8 | 500.0 | |
| 1.46 | -17.00 | 0.78 | -17.00 | 9.42 | 49.26 | 21.72 | 287.58 | 0.3846 | 633.2 | 999999 | |
| 1.12 | -17.00 | 0.60 | -17.00 | 9.03 | 49.14 | 21.60 | 286.68 | 0.3812 | 765.3 | 999999 | |
| 0.95 | -17.00 | 0.51 | -17.00 | 9.55 | 48.95 | 21.41 | 288.11 | 0.3803 | 1025.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 10.41 | 49.01 | 21.47 | 290.25 | 0.3853 | -801.0 | -642.1 | |
| 3.96 | -17.00 | 2.11 | -17.00 | 9.16 | 48.79 | 21.25 | 287.23 | 0.3763 | 1100.1 | 999999 | |
| 0.77 | 1.55 | 0.41 | 0.83 | 9.91 | 48.68 | 21.14 | 289.23 | 0.3779 | -682.9 | -782.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 10.15 | 48.70 | 21.16 | 289.83 | 0.3793 | -949.0 | -655.2 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 9.64 | 46.80 | 19.26 | 290.06 | 0.3477 | 608.0 | 635.4 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 9.08 | 46.52 | 18.97 | 288.74 | 0.3405 | 869.0 | 738.7 | |
| 6.02 | 20.48 | 3.17 | 10.79 | 9.80 | 46.49 | 18.95 | 290.77 | 0.3438 | 1029.7 | 760.5 | |
| 5.16 | -27.00 | 2.72 | -27.00 | 10.04 | 46.22 | 18.68 | 291.70 | 0.3409 | 1104.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 10.55 | 46.13 | 18.58 | 293.20 | 0.3424 | 715.0 | 549.1 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 10.47 | 45.96 | 18.42 | 293.13 | 0.3394 | 904.0 | 789.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 12.22 | 45.28 | 17.74 | 298.66 | 0.3409 | 823.0 | 696.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
