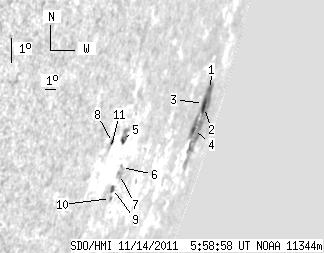

SDO HMI 2011-11-14 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.57 | 79.67 | 45.59 | 253.72 | -16.85 | 106.44 | 79.44 | 252.35 | 0.9864 | 36.9 | -33.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.41 | 58.68 | 9.04 | 217.91 | -16.16 | 108.29 | 81.29 | 253.26 | 0.9920 | 292.4 | -22.7 | |
| 2.15 | -1.00 | 8.00 | -1.00 | -16.71 | 108.12 | 81.12 | 252.69 | 0.9918 | -444.0 | 999999 | |
| 3.10 | -1.00 | 10.91 | -1.00 | -16.56 | 107.63 | 80.63 | 252.80 | 0.9907 | 330.8 | 999999 | |
| 2.58 | -1.00 | 8.67 | -1.00 | -17.35 | 107.18 | 80.18 | 251.96 | 0.9898 | 388.0 | 999999 | |
| 1.63 | 7.92 | 2.74 | 13.32 | -17.22 | 97.97 | 70.97 | 250.95 | 0.9566 | -375.2 | -149.7 | |
| 0.00 | 1.29 | 0.00 | 2.27 | -18.10 | 98.72 | 71.72 | 250.15 | 0.9608 | 12.0 | 99.3 | |
| 0.00 | 4.30 | 0.00 | 7.59 | -18.33 | 98.74 | 71.74 | 249.92 | 0.9611 | 119.0 | 129.7 | |
| 1.55 | 2.32 | 2.47 | 3.70 | -17.23 | 97.04 | 70.04 | 250.79 | 0.9520 | -442.7 | -543.1 | |
| 2.15 | 2.84 | 3.76 | 4.96 | -18.76 | 98.47 | 71.48 | 249.44 | 0.9602 | -324.4 | -293.4 | |
| 0.00 | 1.55 | 0.00 | 2.74 | -19.08 | 98.61 | 71.61 | 249.13 | 0.9610 | -350.0 | -216.9 | |
| 0.00 | 0.77 | 0.00 | 1.23 | -17.42 | 97.01 | 70.02 | 250.59 | 0.9521 | -672.0 | -623.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
