SDO HMI 2011-11-14 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.29 | 66.41 | 64.28 | 251.38 | -16.89 | 106.90 | 81.00 | 252.48 | 0.9904 | 53.8 | -37.3 | |
|
previous
or next observation for the same group /

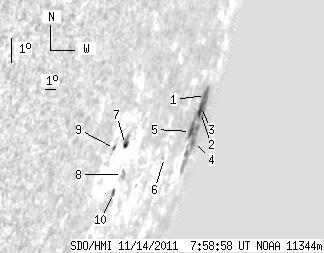

back to the solar disc SDO HMI 2011-11-14 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 51.96 | 17.75 | 224.60 | -16.18 | 108.10 | 82.20 | 253.32 | 0.9938 | 305.9 | -38.8 | |
| 1.29 | -1.00 | 5.53 | -1.00 | -16.71 | 108.10 | 82.20 | 252.79 | 0.9939 | -559.6 | 999999 | |
| 3.10 | -1.00 | 12.55 | -1.00 | -16.50 | 107.64 | 81.73 | 252.96 | 0.9930 | 304.8 | 999999 | |
| 2.15 | -1.00 | 10.28 | -1.00 | -17.68 | 108.74 | 82.84 | 251.87 | 0.9952 | -392.9 | 999999 | |
| 3.18 | -1.00 | 12.15 | -1.00 | -17.25 | 107.04 | 81.14 | 252.16 | 0.9919 | 309.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 2.05 | -17.89 | 103.62 | 77.71 | 251.17 | 0.9833 | 194.0 | 197.8 | |
| 2.32 | 5.68 | 4.14 | 10.14 | -17.19 | 98.03 | 72.13 | 251.16 | 0.9620 | -368.7 | -171.0 | |
| 0.00 | 3.96 | 0.00 | 7.44 | -18.17 | 98.72 | 72.81 | 250.25 | 0.9656 | 270.0 | 236.5 | |
| 1.12 | 1.98 | 1.88 | 3.33 | -17.26 | 97.00 | 71.10 | 250.93 | 0.9572 | -449.3 | -385.5 | |
| 0.00 | 2.06 | 0.00 | 3.82 | -18.75 | 98.39 | 72.49 | 249.60 | 0.9646 | -359.0 | -288.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
