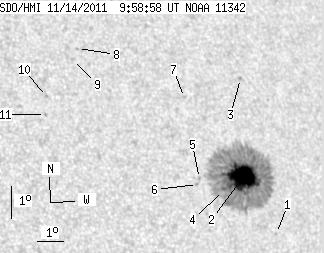

SDO HMI 2011-11-14 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.53 | 321.34 | 30.40 | 209.56 | 16.09 | 63.87 | 39.06 | 291.48 | 0.6531 | -934.8 | -320.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.68 | 14.30 | 64.96 | 40.15 | 288.45 | 0.6610 | -598.0 | -414.2 | |
| 45.93 | 311.10 | 30.01 | 203.09 | 16.04 | 63.99 | 39.18 | 291.36 | 0.6543 | -1172.4 | -327.6 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 19.06 | 64.71 | 39.89 | 295.47 | 0.6738 | -668.0 | -629.8 | |
| 0.60 | -2.00 | 0.39 | -2.00 | 15.67 | 63.15 | 38.34 | 291.12 | 0.6426 | -1076.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 16.06 | 62.30 | 37.49 | 292.05 | 0.6333 | -852.0 | -680.9 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 15.88 | 62.18 | 37.37 | 291.83 | 0.6312 | -830.0 | -696.5 | |
| 0.00 | 1.29 | 0.00 | 0.83 | 18.55 | 62.31 | 37.50 | 295.79 | 0.6433 | -626.0 | -529.7 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 20.18 | 58.57 | 33.76 | 300.25 | 0.6061 | 485.0 | 392.3 | |
| 0.00 | 1.46 | 0.00 | 0.90 | 19.84 | 58.30 | 33.49 | 299.91 | 0.6010 | 659.0 | 553.5 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 18.73 | 57.07 | 32.26 | 298.92 | 0.5798 | 650.0 | 557.0 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 18.18 | 56.92 | 32.11 | 298.13 | 0.5748 | 697.0 | 588.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
