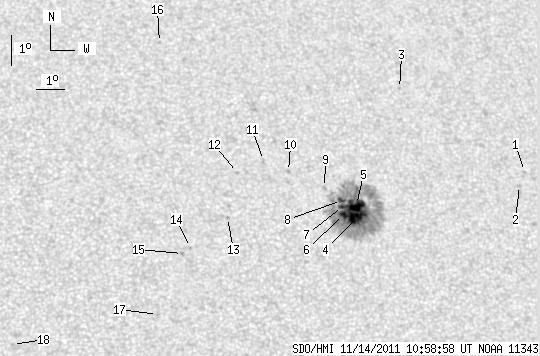

SDO HMI 2011-11-14 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.18 | 238.56 | 22.01 | 137.47 | 28.28 | 42.43 | 18.16 | 327.50 | 0.5125 | -745.8 | -382.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.78 | 29.41 | 49.08 | 24.82 | 320.88 | 0.5818 | -633.0 | -508.1 | |
| 0.00 | 1.55 | 0.00 | 0.93 | 28.95 | 48.78 | 24.51 | 320.62 | 0.5745 | -754.0 | -524.3 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 32.28 | 45.12 | 20.85 | 328.58 | 0.5795 | -669.0 | -521.0 | |
| 15.31 | 221.36 | 8.81 | 127.60 | 28.00 | 42.70 | 18.43 | 326.75 | 0.5111 | -1293.4 | -402.7 | |
| 13.67 | -4.00 | 7.90 | -4.00 | 28.43 | 42.74 | 18.47 | 327.21 | 0.5165 | -979.2 | 999999 | |
| 3.27 | -4.00 | 1.88 | -4.00 | 28.11 | 42.22 | 17.95 | 327.53 | 0.5085 | -1249.5 | 999999 | |
| 3.01 | -4.00 | 1.73 | -4.00 | 28.37 | 42.23 | 17.96 | 327.83 | 0.5117 | -953.2 | 999999 | |
| 2.92 | -4.00 | 1.69 | -4.00 | 28.57 | 42.23 | 17.96 | 328.06 | 0.5141 | -849.2 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.09 | 29.00 | 41.70 | 17.43 | 329.30 | 0.5153 | -704.0 | -539.0 | |
| 0.00 | 1.46 | 0.00 | 0.84 | 29.55 | 40.52 | 16.25 | 331.57 | 0.5133 | -825.0 | -588.5 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 29.93 | 39.69 | 15.42 | 333.15 | 0.5123 | -764.0 | -646.3 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 29.54 | 38.71 | 14.44 | 334.21 | 0.5007 | -729.0 | -538.1 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 28.06 | 38.15 | 13.89 | 333.55 | 0.4774 | 732.0 | 525.1 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 27.10 | 36.76 | 12.50 | 334.84 | 0.4550 | 830.0 | 637.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 26.91 | 36.47 | 12.20 | 335.15 | 0.4504 | 890.0 | 760.5 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 33.98 | 36.57 | 12.30 | 341.12 | 0.5479 | -455.0 | -362.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 24.95 | 35.43 | 11.16 | 334.94 | 0.4162 | 707.0 | 451.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 24.03 | 30.58 | 6.32 | 344.40 | 0.3753 | 826.0 | 654.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
