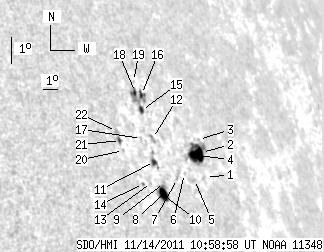

SDO HMI 2011-11-14 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.01 | 84.06 | 37.25 | 94.31 | 19.61 | 87.48 | 63.21 | 290.44 | 0.8990 | -161.4 | -218.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.82 | 18.57 | 89.42 | 65.16 | 289.07 | 0.9120 | -318.0 | -332.5 | |
| 1.98 | 28.81 | 2.40 | 34.44 | 19.33 | 89.70 | 65.43 | 289.89 | 0.9143 | 223.3 | -291.1 | |
| 0.00 | 0.69 | 0.00 | 0.84 | 19.74 | 89.78 | 65.52 | 290.32 | 0.9152 | 268.0 | 221.9 | |
| 12.38 | -2.00 | 14.74 | -2.00 | 19.26 | 89.26 | 65.00 | 289.85 | 0.9114 | -693.9 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.60 | 18.54 | 88.59 | 64.32 | 289.13 | 0.9062 | -252.0 | -250.4 | |
| 0.00 | 0.86 | 0.00 | 0.98 | 18.75 | 88.02 | 63.75 | 289.43 | 0.9023 | -366.0 | -285.1 | |
| 0.00 | 1.12 | 0.00 | 1.25 | 18.62 | 87.43 | 63.16 | 289.35 | 0.8981 | -585.0 | -483.7 | |
| 1.03 | 11.18 | 1.11 | 11.97 | 18.27 | 86.37 | 62.11 | 289.07 | 0.8899 | -206.7 | 105.0 | |
| 0.00 | 0.52 | 0.00 | 0.56 | 18.54 | 86.48 | 62.21 | 289.36 | 0.8910 | -473.0 | -461.5 | |
| 7.48 | -8.00 | 8.00 | -8.00 | 18.15 | 86.17 | 61.90 | 288.96 | 0.8883 | 516.4 | 999999 | |
| 2.75 | 6.97 | 2.96 | 7.50 | 19.21 | 86.24 | 61.97 | 290.14 | 0.8898 | 409.2 | 135.3 | |
| 0.00 | 3.27 | 0.00 | 3.57 | 19.91 | 86.58 | 62.31 | 290.88 | 0.8930 | -11.0 | -1.6 | |
| 0.00 | 0.52 | 0.00 | 0.54 | 18.58 | 85.64 | 61.37 | 289.51 | 0.8846 | -298.0 | -278.0 | |
| 0.00 | 1.12 | 0.00 | 1.16 | 18.57 | 85.11 | 60.84 | 289.57 | 0.8805 | 323.0 | 272.4 | |
| 1.81 | 19.61 | 1.97 | 21.48 | 20.80 | 86.46 | 62.19 | 291.89 | 0.8930 | 224.3 | -480.1 | |
| 2.92 | -15.00 | 3.24 | -15.00 | 21.29 | 86.82 | 62.55 | 292.38 | 0.8961 | -566.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.47 | 19.94 | 85.86 | 61.59 | 291.01 | 0.8877 | 443.0 | 273.2 | |
| 1.46 | -15.00 | 1.60 | -15.00 | 21.37 | 86.46 | 62.20 | 292.52 | 0.8936 | -654.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.85 | 21.71 | 86.59 | 62.32 | 292.88 | 0.8949 | -201.0 | -211.2 | |
| 0.00 | 0.95 | 0.00 | 0.97 | 19.63 | 84.48 | 60.21 | 290.85 | 0.8767 | 265.0 | 302.2 | |
| 1.20 | 2.84 | 1.23 | 2.90 | 19.94 | 84.48 | 60.21 | 291.21 | 0.8771 | 360.2 | 54.9 | |
| 0.00 | 1.38 | 0.00 | 1.41 | 20.23 | 84.41 | 60.14 | 291.54 | 0.8769 | -328.0 | -312.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
