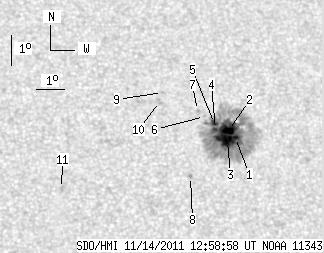

SDO HMI 2011-11-14 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.92 | 217.01 | 13.86 | 125.77 | 28.22 | 42.41 | 19.23 | 325.95 | 0.5205 | -980.5 | -449.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 208.41 | 1.05 | 120.84 | 28.11 | 42.83 | 19.66 | 325.25 | 0.5227 | -1123.7 | -453.8 | |
| 7.14 | -1.00 | 4.14 | -1.00 | 28.34 | 42.63 | 19.45 | 325.80 | 0.5237 | -1187.4 | 999999 | |
| 9.72 | -1.00 | 5.62 | -1.00 | 27.98 | 42.52 | 19.35 | 325.50 | 0.5187 | -1410.1 | 999999 | |
| 1.98 | -1.00 | 1.15 | -1.00 | 28.38 | 42.17 | 19.00 | 326.45 | 0.5203 | -972.8 | 999999 | |
| 3.27 | -1.00 | 1.90 | -1.00 | 28.58 | 42.17 | 19.00 | 326.69 | 0.5227 | -840.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 28.81 | 41.86 | 18.69 | 327.38 | 0.5229 | -598.0 | -531.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 29.01 | 41.64 | 18.47 | 327.90 | 0.5236 | -700.0 | -610.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 26.86 | 41.02 | 17.85 | 326.14 | 0.4928 | -876.0 | -623.0 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 29.63 | 40.50 | 17.33 | 330.14 | 0.5222 | -790.0 | -628.0 | |
| 0.00 | 2.41 | 0.00 | 1.39 | 29.33 | 40.35 | 17.17 | 330.03 | 0.5174 | -660.0 | -581.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 26.53 | 36.53 | 13.35 | 332.75 | 0.4533 | 888.0 | 727.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
