SDO HMI 2011-11-14 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.64 | 0.00 | 6.43 | 11.11 | 11.59 | -10.48 | 50.62 | 0.2323 | -874.6 | -740.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

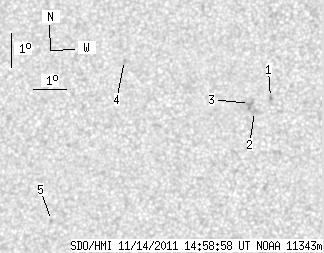

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.78 | 11.64 | 13.24 | -8.83 | 44.73 | 0.2147 | -983.0 | -808.7 | |
| 0.00 | 2.41 | 0.00 | 1.22 | 11.22 | 12.76 | -9.31 | 47.66 | 0.2156 | -861.0 | -733.9 | |
| 0.00 | 5.93 | 0.00 | 3.01 | 11.45 | 12.60 | -9.47 | 47.32 | 0.2203 | -827.0 | -755.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 12.71 | 8.68 | -13.39 | 52.89 | 0.2846 | -822.0 | -662.6 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 7.90 | 6.63 | -15.44 | 71.51 | 0.2793 | -880.0 | -686.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
