SDO HMI 2011-11-14 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.94 | 114.06 | 37.37 | 139.72 | 19.51 | 87.68 | 65.60 | 290.09 | 0.9152 | -66.6 | -190.2 | |
|
previous
or next observation for the same group /

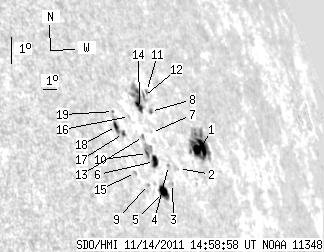

back to the solar disc SDO HMI 2011-11-14 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.00 | 45.99 | 14.59 | 61.27 | 19.28 | 89.84 | 67.77 | 289.62 | 0.9292 | -637.3 | -221.7 | |
| 0.00 | 0.69 | 0.00 | 0.84 | 18.79 | 87.75 | 65.68 | 289.27 | 0.9156 | -386.0 | -292.4 | |
| 0.00 | 1.29 | 0.00 | 1.53 | 18.35 | 86.98 | 64.90 | 288.87 | 0.9101 | -445.0 | -421.7 | |
| 0.00 | 0.95 | 0.00 | 1.13 | 18.91 | 87.08 | 65.01 | 289.47 | 0.9112 | -360.0 | -316.3 | |
| 7.39 | 10.83 | 8.50 | 12.47 | 18.11 | 86.15 | 64.08 | 288.69 | 0.9042 | 466.3 | -106.9 | |
| 4.21 | 7.13 | 4.86 | 8.25 | 19.08 | 86.17 | 64.10 | 289.75 | 0.9051 | 300.9 | 55.3 | |
| 0.00 | 0.95 | 0.00 | 1.11 | 19.96 | 86.61 | 64.54 | 290.67 | 0.9088 | 172.0 | 141.5 | |
| 0.00 | 1.72 | 0.00 | 2.06 | 20.61 | 87.05 | 64.97 | 291.33 | 0.9123 | -158.0 | -183.7 | |
| 0.00 | 1.20 | 0.00 | 1.34 | 18.40 | 85.28 | 63.20 | 289.10 | 0.8982 | 172.0 | 198.7 | |
| 1.89 | 9.20 | 2.16 | 10.56 | 19.34 | 85.86 | 63.78 | 290.07 | 0.9031 | -208.9 | -130.8 | |
| 0.00 | 1.63 | 0.00 | 1.98 | 21.23 | 87.26 | 65.19 | 291.98 | 0.9142 | -293.0 | -285.8 | |
| 0.00 | 2.66 | 0.00 | 3.19 | 21.09 | 86.91 | 64.84 | 291.87 | 0.9117 | -504.0 | -499.2 | |
| 0.00 | 1.89 | 0.00 | 2.17 | 19.87 | 85.95 | 63.88 | 290.64 | 0.9042 | 298.0 | 116.2 | |
| 2.58 | 15.30 | 3.02 | 17.96 | 20.73 | 86.33 | 64.25 | 291.55 | 0.9075 | 255.7 | -367.3 | |
| 0.00 | 1.46 | 0.00 | 1.60 | 18.80 | 84.64 | 62.57 | 289.62 | 0.8939 | 394.0 | 360.2 | |
| 0.00 | 0.86 | 0.00 | 0.97 | 20.52 | 85.44 | 63.36 | 291.43 | 0.9011 | 315.0 | 333.3 | |
| 1.38 | 9.54 | 1.52 | 10.44 | 20.02 | 84.65 | 62.58 | 290.97 | 0.8950 | 439.1 | 48.6 | |
| 2.49 | -17.00 | 2.72 | -17.00 | 20.25 | 84.33 | 62.26 | 291.27 | 0.8930 | 338.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.85 | 20.72 | 84.46 | 62.39 | 291.77 | 0.8944 | -530.0 | -455.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
