SDO HMI 2011-11-14 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.85 | 0.00 | 199.27 | -16.79 | 107.23 | 85.71 | 252.97 | 0.9978 | -194.6 | 25.7 | |
|
previous
or next observation for the same group /

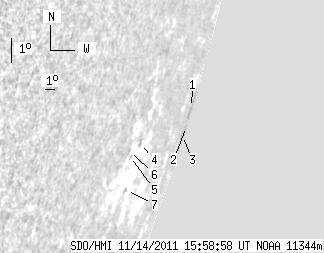

back to the solar disc SDO HMI 2011-11-14 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.45 | 0.00 | 120.45 | -16.46 | 107.94 | 86.42 | 253.36 | 0.9992 | 45.0 | 81.0 | |
| 0.00 | 1.20 | 0.00 | 17.28 | -17.08 | 108.56 | 87.04 | 252.78 | 0.9996 | -272.0 | -127.4 | |
| 0.00 | 3.52 | 0.00 | 48.29 | -17.31 | 107.60 | 86.08 | 252.49 | 0.9990 | 120.0 | 11.7 | |
| 0.00 | 2.15 | 0.00 | 5.16 | -17.07 | 98.13 | 76.61 | 251.87 | 0.9795 | -188.0 | -98.7 | |
| 0.00 | 1.20 | 0.00 | 2.73 | -17.43 | 97.27 | 75.74 | 251.40 | 0.9767 | -367.0 | -267.7 | |
| 0.00 | 1.38 | 0.00 | 3.03 | -17.26 | 96.92 | 75.40 | 251.53 | 0.9753 | -503.0 | -437.8 | |
| 0.00 | 0.95 | 0.00 | 2.33 | -18.55 | 98.25 | 76.72 | 250.38 | 0.9805 | -197.0 | -181.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
