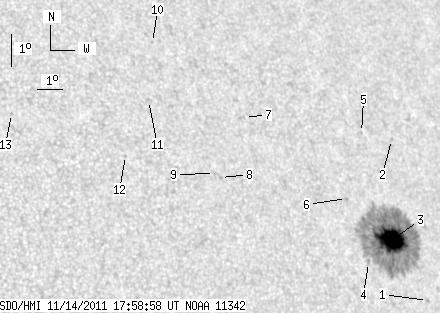

SDO HMI 2011-11-14 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.81 | 309.74 | 26.35 | 215.29 | 16.12 | 63.70 | 43.28 | 290.15 | 0.7039 | -751.1 | -314.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 1.09 | 14.16 | 64.96 | 44.55 | 287.07 | 0.7139 | -588.0 | -462.2 | |
| 0.00 | 1.46 | 0.00 | 1.05 | 19.11 | 64.86 | 44.44 | 293.84 | 0.7256 | -545.0 | -397.6 | |
| 37.81 | 295.73 | 26.35 | 205.95 | 16.03 | 63.87 | 43.45 | 289.95 | 0.7055 | -1179.0 | -333.0 | |
| 0.00 | 1.80 | 0.00 | 1.23 | 15.39 | 62.77 | 42.35 | 289.39 | 0.6909 | -735.0 | -614.6 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 19.37 | 63.63 | 43.21 | 294.61 | 0.7129 | -440.0 | -412.5 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 17.37 | 62.38 | 41.96 | 292.30 | 0.6921 | 428.0 | 370.4 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 19.98 | 58.94 | 38.52 | 297.42 | 0.6617 | 467.0 | 365.0 | |
| 0.00 | 1.38 | 0.00 | 0.88 | 18.17 | 57.49 | 37.07 | 295.45 | 0.6366 | 722.0 | 586.8 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 18.30 | 57.29 | 36.87 | 295.74 | 0.6347 | 438.0 | 398.1 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 22.43 | 55.98 | 35.56 | 302.50 | 0.6397 | 558.0 | 464.0 | |
| 0.00 | 1.55 | 0.00 | 0.98 | 20.62 | 55.32 | 34.90 | 300.26 | 0.6222 | 591.0 | 495.6 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 18.95 | 54.03 | 33.61 | 298.47 | 0.5978 | 749.0 | 538.2 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 20.35 | 50.11 | 29.69 | 303.34 | 0.5581 | 614.0 | 464.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
