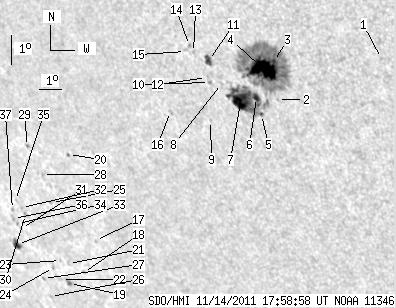

SDO HMI 2011-11-14 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.76 | 294.53 | 47.42 | 217.82 | -18.99 | 337.12 | -43.30 | 119.12 | 0.7413 | 157.5 | 172.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.68 | -17.39 | 344.21 | -36.20 | 120.94 | 0.6595 | 664.0 | 497.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -18.84 | 339.68 | -40.74 | 120.18 | 0.7169 | 324.0 | 281.0 | |
| 1.03 | 177.81 | 0.72 | 125.45 | -17.63 | 339.86 | -40.56 | 118.72 | 0.7090 | 1143.6 | 404.8 | |
| 29.13 | -3.00 | 20.58 | -3.00 | -17.90 | 339.37 | -41.05 | 118.81 | 0.7156 | 1061.3 | 999999 | |
| 1.20 | 68.58 | 0.87 | 49.59 | -19.34 | 338.85 | -41.56 | 120.38 | 0.7280 | 375.4 | -233.6 | |
| 3.52 | -5.00 | 2.53 | -5.00 | -18.80 | 338.81 | -41.61 | 119.68 | 0.7258 | 509.1 | 999999 | |
| 17.19 | -5.00 | 12.49 | -5.00 | -18.96 | 338.09 | -42.33 | 119.50 | 0.7341 | -775.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -18.41 | 337.45 | -42.97 | 118.49 | 0.7382 | -307.0 | -223.6 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -19.62 | 336.57 | -43.85 | 119.57 | 0.7525 | 461.0 | 365.1 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -18.40 | 336.93 | -43.48 | 118.22 | 0.7434 | 573.0 | 423.6 | |
| 5.24 | 5.67 | 3.84 | 4.15 | -17.69 | 337.11 | -43.31 | 117.42 | 0.7386 | 673.3 | 477.0 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -18.24 | 336.85 | -43.57 | 117.99 | 0.7436 | 400.0 | 452.6 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -17.46 | 336.53 | -43.89 | 116.86 | 0.7436 | 470.0 | 417.5 | |
| 0.00 | 1.46 | 0.00 | 1.08 | -17.25 | 336.42 | -43.99 | 116.54 | 0.7438 | 650.0 | 503.9 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -17.44 | 336.19 | -44.23 | 116.68 | 0.7471 | 392.0 | 456.0 | |
| 0.00 | 1.98 | 0.00 | 1.52 | -19.40 | 334.87 | -45.54 | 118.50 | 0.7684 | 615.0 | 481.1 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -23.81 | 329.28 | -51.14 | 121.26 | 0.8356 | -462.0 | -462.9 | |
| 0.00 | 1.12 | 0.00 | 1.04 | -24.92 | 328.00 | -52.42 | 122.00 | 0.8497 | -531.0 | -412.9 | |
| 1.72 | 3.18 | 1.65 | 3.05 | -25.33 | 326.97 | -53.45 | 122.07 | 0.8589 | 317.5 | 36.9 | |
| 0.00 | 1.29 | 0.00 | 1.13 | -21.00 | 329.33 | -51.08 | 118.11 | 0.8257 | 121.0 | 222.4 | |
| 0.00 | 1.38 | 0.00 | 1.30 | -24.65 | 327.35 | -53.07 | 121.46 | 0.8538 | -543.0 | -461.8 | |
| 0.00 | 1.20 | 0.00 | 1.17 | -25.22 | 326.60 | -53.81 | 121.81 | 0.8613 | -232.0 | -225.1 | |
| 0.00 | 0.86 | 0.00 | 0.82 | -24.57 | 326.96 | -53.46 | 121.23 | 0.8566 | -453.0 | -416.1 | |
| 0.00 | 1.03 | 0.00 | 1.00 | -24.82 | 326.41 | -54.01 | 121.31 | 0.8616 | -547.0 | -404.0 | |
| 0.00 | 1.20 | 0.00 | 1.11 | -22.63 | 327.61 | -52.81 | 119.31 | 0.8454 | -245.0 | -297.7 | |
| 0.00 | 0.34 | 0.00 | 0.34 | -25.83 | 325.57 | -54.85 | 122.10 | 0.8708 | -468.0 | -398.8 | |
| 0.00 | 1.12 | 0.00 | 1.11 | -25.23 | 325.58 | -54.84 | 121.45 | 0.8690 | -385.0 | -310.8 | |
| 0.00 | 1.38 | 0.00 | 1.26 | -21.72 | 327.62 | -52.80 | 118.30 | 0.8425 | -479.0 | -412.8 | |
| 0.00 | 1.12 | 0.00 | 1.02 | -20.83 | 327.29 | -53.13 | 117.17 | 0.8426 | -586.0 | -507.5 | |
| 0.00 | 2.32 | 0.00 | 2.24 | -23.10 | 325.92 | -54.50 | 119.24 | 0.8603 | -709.0 | -547.0 | |
| 0.00 | 0.77 | 0.00 | 0.76 | -23.58 | 325.40 | -55.02 | 119.59 | 0.8656 | -466.0 | -380.1 | |
| 0.00 | 1.12 | 0.00 | 1.08 | -22.87 | 325.83 | -54.59 | 118.96 | 0.8603 | -460.0 | -382.0 | |
| 4.73 | 6.45 | 4.74 | 6.47 | -24.13 | 324.81 | -55.61 | 120.00 | 0.8716 | -370.3 | -135.8 | |
| 0.00 | 1.20 | 0.00 | 1.18 | -23.42 | 325.27 | -55.15 | 119.37 | 0.8662 | -444.0 | -362.9 | |
| 0.00 | 0.95 | 0.00 | 0.91 | -22.65 | 325.63 | -54.79 | 118.65 | 0.8613 | -411.0 | -316.8 | |
| 0.00 | 2.23 | 0.00 | 2.20 | -23.26 | 325.14 | -55.28 | 119.15 | 0.8667 | -392.0 | -226.1 | |
| 0.00 | 1.46 | 0.00 | 1.43 | -22.96 | 325.27 | -55.15 | 118.87 | 0.8649 | -464.0 | -397.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
