SDO HMI 2011-11-14 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.07 | 66.18 | 46.43 | 442.36 | 19.10 | 106.11 | 86.25 | 288.96 | 0.9966 | 357.5 | -82.7 | |
|
previous
or next observation for the same group /

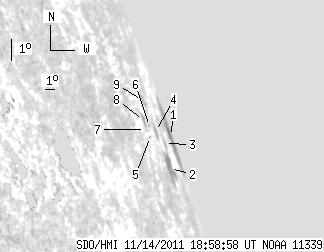

back to the solar disc SDO HMI 2011-11-14 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.07 | 29.65 | 46.43 | 299.66 | 19.13 | 107.54 | 87.68 | 289.02 | 0.9987 | 466.4 | 50.0 | |
| 0.00 | 16.50 | 0.00 | 69.26 | 18.32 | 103.63 | 83.77 | 288.11 | 0.9934 | -550.0 | -410.9 | |
| 0.00 | 2.92 | 0.00 | 13.52 | 19.07 | 104.29 | 84.43 | 288.88 | 0.9946 | -142.0 | -162.0 | |
| 0.00 | 4.90 | 0.00 | 19.07 | 19.51 | 103.03 | 83.17 | 289.30 | 0.9922 | -347.0 | -342.8 | |
| 0.00 | 0.86 | 0.00 | 2.76 | 19.43 | 101.56 | 81.69 | 289.21 | 0.9889 | -389.0 | -372.0 | |
| 0.00 | 0.69 | 0.00 | 2.37 | 19.72 | 102.08 | 82.21 | 289.51 | 0.9901 | -276.0 | -223.2 | |
| 0.00 | 1.38 | 0.00 | 4.23 | 19.67 | 101.06 | 81.20 | 289.46 | 0.9877 | -134.0 | -156.6 | |
| 0.00 | 5.24 | 0.00 | 16.55 | 19.94 | 101.29 | 81.43 | 289.74 | 0.9883 | -87.0 | -94.0 | |
| 0.00 | 4.04 | 0.00 | 14.94 | 20.51 | 102.61 | 82.75 | 290.31 | 0.9913 | -269.0 | -298.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
