SDO HMI 2011-11-14 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.23 | 225.61 | 14.33 | 133.46 | 28.33 | 42.16 | 22.29 | 322.32 | 0.5484 | -803.5 | -432.2 | |
|
previous
or next observation for the same group /

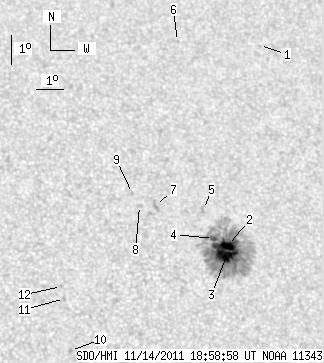

back to the solar disc SDO HMI 2011-11-14 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.44 | 35.14 | 45.57 | 25.71 | 326.55 | 0.6460 | -506.0 | -427.1 | |
| 7.56 | 209.18 | 4.48 | 123.81 | 28.40 | 42.47 | 22.60 | 322.04 | 0.5518 | -1133.3 | -448.1 | |
| 13.75 | -2.00 | 8.12 | -2.00 | 28.07 | 42.36 | 22.49 | 321.75 | 0.5474 | -1342.7 | 999999 | |
| 2.92 | -2.00 | 1.73 | -2.00 | 28.64 | 42.01 | 22.14 | 322.87 | 0.5502 | -793.0 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.54 | 29.60 | 41.86 | 22.00 | 324.23 | 0.5593 | -579.0 | -514.4 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 35.34 | 42.37 | 22.51 | 329.92 | 0.6253 | -599.0 | -536.9 | |
| 0.00 | 4.55 | 0.00 | 2.69 | 29.76 | 40.14 | 20.27 | 326.48 | 0.5468 | -818.0 | -600.2 | |
| 0.00 | 2.15 | 0.00 | 1.26 | 29.77 | 39.56 | 19.69 | 327.21 | 0.5423 | -438.0 | -406.8 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 30.18 | 39.39 | 19.52 | 327.88 | 0.5456 | -734.0 | -604.8 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 25.08 | 36.33 | 16.47 | 325.88 | 0.4596 | 814.0 | 615.6 | |
| 0.00 | 1.55 | 0.00 | 0.87 | 26.76 | 36.37 | 16.50 | 327.99 | 0.4806 | 754.0 | 608.5 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 27.15 | 36.32 | 16.46 | 328.54 | 0.4851 | 713.0 | 626.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
