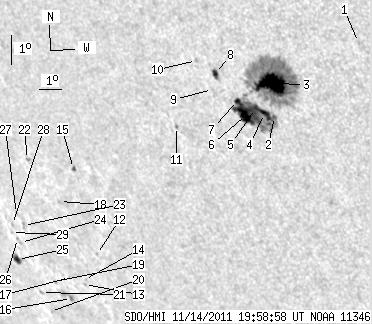

SDO HMI 2011-11-14 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.95 | 303.32 | 62.10 | 219.30 | -18.93 | 337.33 | -41.98 | 119.69 | 0.7277 | 113.4 | 217.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.45 | -16.48 | 343.15 | -36.16 | 119.71 | 0.6538 | 510.0 | 517.0 | |
| 1.12 | 81.90 | 0.78 | 58.18 | -18.95 | 339.19 | -40.12 | 120.66 | 0.7109 | 578.3 | -125.1 | |
| 32.92 | 182.12 | 22.87 | 126.32 | -17.90 | 339.37 | -39.94 | 119.40 | 0.7036 | 1085.4 | 405.1 | |
| 8.59 | -2.00 | 6.06 | -2.00 | -18.87 | 338.81 | -40.51 | 120.34 | 0.7145 | 514.9 | 999999 | |
| 1.72 | -2.00 | 1.22 | -2.00 | -18.72 | 338.48 | -40.84 | 119.97 | 0.7173 | -302.0 | 999999 | |
| 29.82 | -2.00 | 21.29 | -2.00 | -18.93 | 338.04 | -41.27 | 120.00 | 0.7229 | -729.0 | 999999 | |
| 1.38 | -2.00 | 0.98 | -2.00 | -18.49 | 337.79 | -41.52 | 119.32 | 0.7234 | 264.4 | 999999 | |
| 4.04 | 5.16 | 2.90 | 3.71 | -17.66 | 337.11 | -42.20 | 117.91 | 0.7267 | 668.0 | 508.5 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -18.17 | 336.83 | -42.48 | 118.43 | 0.7320 | 476.0 | 416.5 | |
| 0.00 | 1.72 | 0.00 | 1.25 | -17.27 | 336.42 | -42.89 | 117.08 | 0.7323 | 674.0 | 570.5 | |
| 0.00 | 1.55 | 0.00 | 1.17 | -19.42 | 334.87 | -44.44 | 119.04 | 0.7576 | 659.0 | 543.3 | |
| 0.00 | 1.12 | 0.00 | 0.98 | -23.80 | 329.19 | -50.12 | 121.67 | 0.8271 | -544.0 | -476.2 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -24.85 | 327.99 | -51.32 | 122.35 | 0.8407 | -519.0 | -431.4 | |
| 0.00 | 0.52 | 0.00 | 0.47 | -24.68 | 328.09 | -51.22 | 122.20 | 0.8393 | -479.0 | -504.0 | |
| 1.20 | 2.15 | 1.02 | 1.83 | -20.99 | 329.43 | -49.88 | 118.55 | 0.8150 | 392.4 | 309.3 | |
| 1.12 | 5.67 | 1.04 | 5.32 | -25.36 | 326.99 | -52.32 | 122.52 | 0.8503 | 311.9 | -90.7 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -24.64 | 327.32 | -51.99 | 121.86 | 0.8453 | -598.0 | -500.6 | |
| 0.00 | 1.29 | 0.00 | 1.14 | -22.11 | 328.19 | -51.13 | 119.35 | 0.8297 | -202.0 | -301.2 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -24.81 | 326.41 | -52.91 | 121.70 | 0.8531 | -485.0 | -418.6 | |
| 0.00 | 0.69 | 0.00 | 0.67 | -25.86 | 325.52 | -53.79 | 122.51 | 0.8631 | -543.0 | -429.1 | |
| 0.00 | 1.46 | 0.00 | 1.42 | -25.22 | 325.43 | -53.88 | 121.79 | 0.8618 | -417.0 | -332.7 | |
| 0.00 | 1.20 | 0.00 | 1.07 | -20.79 | 327.19 | -52.12 | 117.48 | 0.8339 | -612.0 | -529.5 | |
| 0.00 | 1.29 | 0.00 | 1.21 | -22.99 | 325.81 | -53.51 | 119.47 | 0.8521 | -694.0 | -546.8 | |
| 0.00 | 1.20 | 0.00 | 1.15 | -23.57 | 325.30 | -54.02 | 119.93 | 0.8578 | -410.0 | -349.3 | |
| 4.04 | 6.88 | 3.94 | 6.71 | -24.16 | 324.77 | -54.55 | 120.38 | 0.8636 | -388.2 | -164.1 | |
| 0.00 | 1.03 | 0.00 | 0.99 | -23.45 | 325.21 | -54.10 | 119.76 | 0.8582 | -410.0 | -322.2 | |
| 0.00 | 0.69 | 0.00 | 0.65 | -22.61 | 325.64 | -53.67 | 118.98 | 0.8522 | -354.0 | -356.4 | |
| 0.00 | 1.12 | 0.00 | 1.07 | -22.99 | 325.21 | -54.11 | 119.25 | 0.8568 | -502.0 | -413.6 | |
| 0.00 | 1.03 | 0.00 | 0.99 | -23.26 | 324.99 | -54.32 | 119.47 | 0.8593 | -255.0 | -232.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
