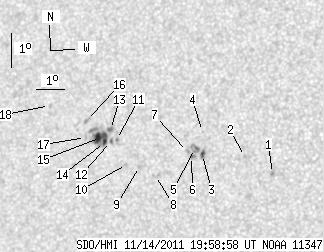

SDO HMI 2011-11-14 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.72 | 52.18 | 7.54 | 30.76 | 8.15 | 346.74 | -32.58 | 79.49 | 0.5440 | 45.8 | -71.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.96 | 7.39 | 351.58 | -27.73 | 79.75 | 0.4709 | -967.0 | -736.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 7.87 | 350.60 | -28.72 | 79.03 | 0.4868 | -820.0 | -572.1 | |
| 2.23 | 2.92 | 1.28 | 1.68 | 7.89 | 349.15 | -30.16 | 79.38 | 0.5085 | -948.1 | -669.4 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 8.58 | 349.09 | -30.22 | 78.06 | 0.5108 | 630.0 | 508.6 | |
| 0.00 | 6.02 | 0.00 | 3.47 | 8.06 | 348.86 | -30.46 | 79.12 | 0.5131 | -855.0 | -745.0 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 7.82 | 348.77 | -30.54 | 79.61 | 0.5139 | -753.0 | -655.5 | |
| 0.00 | 1.80 | 0.00 | 1.04 | 7.97 | 348.62 | -30.69 | 79.37 | 0.5164 | -653.0 | -492.4 | |
| 0.00 | 2.06 | 0.00 | 1.20 | 7.23 | 347.56 | -31.75 | 81.02 | 0.5307 | -482.0 | -582.8 | |
| 0.00 | 2.23 | 0.00 | 1.31 | 7.48 | 346.97 | -32.34 | 80.67 | 0.5396 | -475.0 | -351.9 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 7.53 | 346.51 | -32.81 | 80.68 | 0.5465 | -487.0 | -402.1 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 8.26 | 346.08 | -33.23 | 79.44 | 0.5538 | 942.0 | 826.7 | |
| 0.95 | 1.72 | 0.56 | 1.02 | 8.19 | 345.87 | -33.44 | 79.60 | 0.5567 | 819.8 | 693.4 | |
| 0.00 | 2.84 | 0.00 | 1.69 | 8.55 | 345.84 | -33.47 | 78.97 | 0.5579 | 869.0 | 774.8 | |
| 1.55 | 19.77 | 0.92 | 11.82 | 8.16 | 345.66 | -33.65 | 79.71 | 0.5597 | 831.4 | 393.5 | |
| 7.99 | -14.00 | 4.78 | -14.00 | 8.30 | 345.50 | -33.81 | 79.49 | 0.5622 | 872.8 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.55 | 8.79 | 344.94 | -34.37 | 78.75 | 0.5710 | -554.0 | -302.9 | |
| 0.00 | 1.72 | 0.00 | 1.03 | 8.29 | 344.96 | -34.35 | 79.63 | 0.5698 | -205.0 | -109.6 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 9.20 | 343.54 | -35.77 | 78.38 | 0.5914 | 613.0 | 590.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
