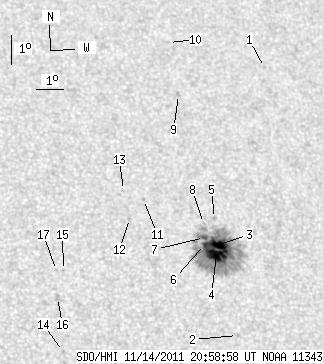

SDO HMI 2011-11-14 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.46 | 190.56 | 18.76 | 113.58 | 28.38 | 42.11 | 23.35 | 321.18 | 0.5585 | -723.3 | -434.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.78 | 34.33 | 45.93 | 27.17 | 324.35 | 0.6493 | -555.0 | -438.5 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 25.44 | 42.46 | 23.70 | 316.82 | 0.5325 | -562.0 | -491.9 | |
| 10.66 | 173.96 | 6.37 | 103.70 | 28.41 | 42.43 | 23.67 | 320.86 | 0.5616 | -1028.1 | -472.1 | |
| 16.33 | -3.00 | 9.72 | -3.00 | 28.08 | 42.28 | 23.52 | 320.61 | 0.5570 | -1288.9 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.19 | 29.27 | 42.49 | 23.73 | 321.88 | 0.5709 | 179.0 | 89.8 | |
| 2.06 | -3.00 | 1.23 | -3.00 | 28.42 | 41.92 | 23.16 | 321.44 | 0.5571 | -939.3 | 999999 | |
| 2.41 | -3.00 | 1.44 | -3.00 | 28.65 | 41.97 | 23.21 | 321.67 | 0.5599 | -777.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 29.11 | 42.04 | 23.28 | 322.17 | 0.5653 | -221.0 | -248.6 | |
| 0.00 | 1.89 | 0.00 | 1.18 | 33.47 | 42.25 | 23.49 | 326.98 | 0.6125 | -787.0 | -585.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 35.28 | 42.40 | 23.64 | 328.71 | 0.6326 | -476.0 | -427.5 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 29.94 | 40.03 | 21.27 | 325.49 | 0.5570 | -646.0 | -548.3 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 29.32 | 39.38 | 20.62 | 325.54 | 0.5447 | -771.0 | -579.5 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 30.26 | 39.36 | 20.60 | 326.65 | 0.5551 | -598.0 | -475.6 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 25.03 | 36.28 | 17.52 | 324.21 | 0.4685 | 848.0 | 674.0 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 27.65 | 36.70 | 17.94 | 327.02 | 0.5032 | 631.0 | 522.5 | |
| 0.00 | 2.66 | 0.00 | 1.51 | 26.78 | 36.35 | 17.59 | 326.43 | 0.4898 | 730.0 | 554.2 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 27.65 | 36.45 | 17.69 | 327.36 | 0.5013 | 606.0 | 494.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
