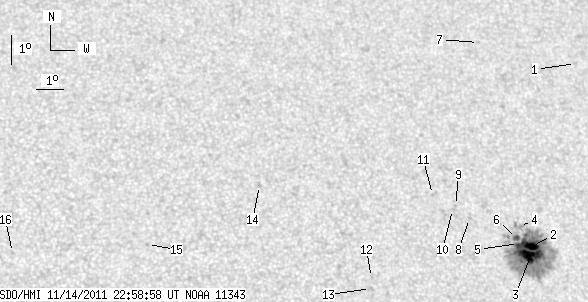

SDO HMI 2011-11-14 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.99 | 189.80 | 16.22 | 113.92 | 28.38 | 41.90 | 24.25 | 320.29 | 0.5673 | -642.0 | -440.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.73 | 34.51 | 45.99 | 28.34 | 323.52 | 0.6602 | -437.0 | -331.5 | |
| 7.05 | 170.72 | 4.25 | 102.55 | 28.38 | 42.39 | 24.74 | 319.69 | 0.5714 | -1029.2 | -489.1 | |
| 15.99 | -2.00 | 9.60 | -2.00 | 28.09 | 42.28 | 24.63 | 319.43 | 0.5675 | -1234.3 | 999999 | |
| 0.00 | 5.93 | 0.00 | 3.59 | 29.05 | 42.12 | 24.46 | 320.83 | 0.5754 | -309.0 | -308.6 | |
| 1.29 | -2.00 | 0.77 | -2.00 | 28.49 | 41.94 | 24.28 | 320.31 | 0.5682 | -841.3 | 999999 | |
| 2.66 | -2.00 | 1.60 | -2.00 | 28.65 | 41.91 | 24.25 | 320.56 | 0.5696 | -770.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 35.33 | 42.35 | 24.69 | 327.73 | 0.6407 | -692.0 | -533.6 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 29.35 | 40.33 | 22.68 | 323.15 | 0.5627 | -16.0 | -204.3 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 29.79 | 39.92 | 22.27 | 324.16 | 0.5638 | -705.0 | -581.3 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 29.66 | 39.78 | 22.12 | 324.16 | 0.5612 | -603.0 | -624.0 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 30.17 | 39.16 | 21.51 | 325.49 | 0.5616 | -781.0 | -574.3 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 27.47 | 36.41 | 18.76 | 325.68 | 0.5081 | 614.0 | 533.1 | |
| 0.00 | 2.49 | 0.00 | 1.43 | 27.11 | 36.32 | 18.66 | 325.36 | 0.5031 | 704.0 | 589.2 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 30.56 | 32.96 | 15.31 | 333.97 | 0.5202 | 780.0 | 589.5 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 28.65 | 28.78 | 11.13 | 338.72 | 0.4687 | 725.0 | 508.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 28.42 | 24.15 | 6.50 | 346.99 | 0.4440 | 707.0 | 535.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
