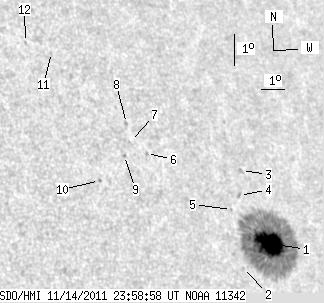

SDO HMI 2011-11-14 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.35 | 286.56 | 30.47 | 210.61 | 16.16 | 63.66 | 46.56 | 289.33 | 0.7414 | -656.2 | -289.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-14 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.35 | 274.25 | 30.47 | 202.01 | 16.05 | 63.82 | 46.71 | 289.13 | 0.7428 | -1004.1 | -317.5 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 15.37 | 62.46 | 45.35 | 288.55 | 0.7260 | -669.0 | -528.6 | |
| 0.00 | 1.81 | 0.00 | 1.33 | 18.32 | 63.29 | 46.19 | 292.27 | 0.7426 | 681.0 | 482.2 | |
| 0.00 | 1.63 | 0.00 | 1.19 | 17.56 | 62.94 | 45.84 | 291.36 | 0.7368 | -489.0 | -365.3 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 17.14 | 62.45 | 45.35 | 290.95 | 0.7303 | -418.0 | -379.1 | |
| 0.00 | 1.29 | 0.00 | 0.89 | 18.98 | 59.34 | 42.24 | 294.46 | 0.7007 | 567.0 | 482.1 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 19.37 | 58.79 | 41.68 | 295.22 | 0.6958 | 636.0 | 596.8 | |
| 0.00 | 1.38 | 0.00 | 0.95 | 19.93 | 58.80 | 41.69 | 295.98 | 0.6980 | 599.0 | 418.7 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 18.95 | 58.40 | 41.30 | 294.78 | 0.6899 | 753.0 | 633.5 | |
| 0.00 | 1.38 | 0.00 | 0.92 | 18.21 | 57.16 | 40.05 | 294.24 | 0.6727 | 690.0 | 634.8 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 22.23 | 56.41 | 39.31 | 300.21 | 0.6810 | 479.0 | 360.1 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 22.58 | 55.46 | 38.35 | 301.18 | 0.6720 | 553.0 | 459.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
