SDO HMI 2011-11-14 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.24 | 8.86 | 1.12 | 4.46 | 12.13 | 13.12 | -3.99 | 23.52 | 0.1752 | -623.2 | -398.7 | |
|
previous
or next observation for the same group /

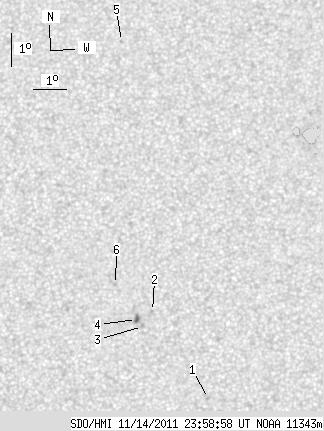

back to the solar disc SDO HMI 2011-11-14 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.64 | 8.89 | 15.07 | -2.03 | 18.58 | 0.1104 | 873.0 | 694.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.49 | 13.36 | -3.74 | 23.22 | 0.1631 | -946.0 | -735.8 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.04 | 13.06 | -4.04 | 26.06 | 0.1582 | -786.0 | -529.2 | |
| 2.24 | 3.18 | 1.12 | 1.60 | 11.25 | 12.88 | -4.23 | 26.49 | 0.1628 | -1104.5 | -999.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 19.69 | 12.23 | -4.88 | 15.49 | 0.3011 | -791.0 | -514.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 12.29 | 12.22 | -4.88 | 27.00 | 0.1840 | -927.0 | -567.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
