SDO HMI 2011-11-15 00:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.17 | 277.64 | 34.34 | 206.01 | 16.18 | 63.59 | 47.04 | 289.24 | 0.7468 | -683.4 | -268.7 | |
|
previous
or next observation for the same group /

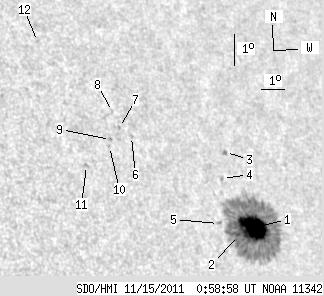

back to the solar disc SDO HMI 2011-11-15 00:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.71 | 263.53 | 33.27 | 196.09 | 16.06 | 63.81 | 47.26 | 289.01 | 0.7489 | -983.4 | -302.6 | |
| 1.46 | -1.00 | 1.07 | -1.00 | 15.84 | 63.07 | 46.51 | 288.90 | 0.7401 | -988.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.28 | 18.39 | 63.31 | 46.76 | 292.20 | 0.7490 | 659.0 | 557.6 | |
| 0.00 | 1.46 | 0.00 | 1.08 | 17.60 | 62.90 | 46.35 | 291.28 | 0.7425 | -550.0 | -405.5 | |
| 0.00 | 1.38 | 0.00 | 1.00 | 16.23 | 62.29 | 45.74 | 289.63 | 0.7324 | -741.0 | -718.2 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 19.02 | 59.36 | 42.81 | 294.32 | 0.7073 | 479.0 | 460.4 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 19.31 | 58.94 | 42.39 | 294.87 | 0.7036 | 511.0 | 435.8 | |
| 0.00 | 1.29 | 0.00 | 0.90 | 19.81 | 58.81 | 42.25 | 295.61 | 0.7039 | 428.0 | 347.7 | |
| 0.00 | 1.29 | 0.00 | 0.89 | 18.95 | 58.45 | 41.89 | 294.57 | 0.6968 | 757.0 | 648.8 | |
| 0.00 | 1.12 | 0.00 | 0.77 | 18.74 | 58.34 | 41.79 | 294.31 | 0.6948 | 631.0 | 514.7 | |
| 0.00 | 2.41 | 0.00 | 1.62 | 18.19 | 57.22 | 40.66 | 293.97 | 0.6798 | 737.0 | 560.1 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 22.09 | 56.40 | 39.85 | 299.76 | 0.6862 | 560.0 | 455.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
