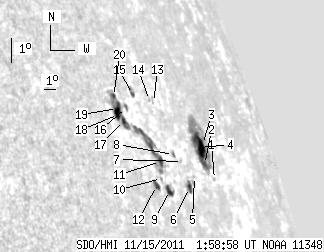

SDO HMI 2011-11-15 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.20 | 152.56 | 64.84 | 245.33 | 19.44 | 87.98 | 71.97 | 289.53 | 0.9519 | -117.6 | -147.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 2.62 | 18.30 | 91.10 | 75.09 | 288.18 | 0.9668 | -423.0 | -356.6 | |
| 0.60 | 57.27 | 1.11 | 107.49 | 18.80 | 90.50 | 74.50 | 288.72 | 0.9644 | -830.9 | -130.9 | |
| 2.84 | -2.00 | 5.40 | -2.00 | 19.40 | 91.04 | 75.04 | 289.32 | 0.9668 | 266.3 | 999999 | |
| 10.66 | -2.00 | 19.77 | -2.00 | 19.33 | 90.58 | 74.57 | 289.26 | 0.9648 | -567.3 | 999999 | |
| 0.00 | 1.81 | 0.00 | 3.05 | 18.50 | 89.01 | 73.00 | 288.46 | 0.9575 | -386.0 | -432.5 | |
| 2.92 | 7.48 | 4.72 | 12.19 | 18.19 | 88.15 | 72.15 | 288.19 | 0.9532 | 284.9 | -75.1 | |
| 0.00 | 0.60 | 0.00 | 0.98 | 19.00 | 88.28 | 72.28 | 289.03 | 0.9541 | -298.0 | -317.0 | |
| 0.00 | 1.98 | 0.00 | 3.12 | 19.25 | 87.62 | 71.62 | 289.33 | 0.9508 | -443.0 | -433.5 | |
| 4.13 | 7.40 | 6.05 | 10.86 | 18.19 | 86.19 | 70.18 | 288.29 | 0.9428 | 309.3 | 24.0 | |
| 0.00 | 1.20 | 0.00 | 1.74 | 18.58 | 85.81 | 69.80 | 288.73 | 0.9409 | -331.0 | -309.7 | |
| 3.10 | 31.56 | 4.56 | 45.64 | 19.10 | 86.20 | 70.20 | 289.25 | 0.9433 | 295.4 | -178.8 | |
| 3.70 | 4.99 | 5.20 | 7.01 | 18.39 | 85.18 | 69.18 | 288.57 | 0.9372 | 296.0 | 174.4 | |
| 0.00 | 1.03 | 0.00 | 1.62 | 20.90 | 87.43 | 71.42 | 291.07 | 0.9504 | -333.0 | -310.0 | |
| 0.00 | 0.69 | 0.00 | 1.06 | 20.97 | 87.11 | 71.11 | 291.17 | 0.9488 | -484.0 | -429.4 | |
| 1.55 | 3.87 | 2.25 | 5.63 | 21.23 | 85.76 | 69.75 | 291.55 | 0.9417 | 230.7 | 72.9 | |
| 0.00 | 2.49 | 0.00 | 3.48 | 20.86 | 84.83 | 68.83 | 291.23 | 0.9364 | 296.0 | 198.4 | |
| 2.15 | 28.81 | 2.92 | 38.84 | 20.48 | 84.20 | 68.19 | 290.88 | 0.9325 | 353.8 | -175.2 | |
| 3.27 | -17.00 | 4.39 | -17.00 | 20.68 | 83.95 | 67.95 | 291.12 | 0.9312 | 313.4 | 999999 | |
| 4.30 | -17.00 | 5.80 | -17.00 | 20.86 | 84.05 | 68.04 | 291.31 | 0.9318 | -507.5 | 999999 | |
| 1.98 | -17.00 | 2.67 | -17.00 | 21.24 | 84.07 | 68.06 | 291.71 | 0.9322 | -580.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
