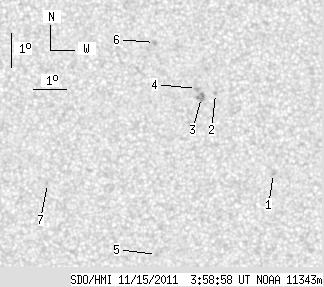

SDO HMI 2011-11-15 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.01 | 0.00 | 7.01 | 10.80 | 12.68 | -2.23 | 331.52 | 0.1463 | -385.0 | -555.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.73 | 8.95 | 15.16 | 0.25 | 357.66 | 0.1063 | 943.0 | 790.5 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 11.34 | 13.41 | -1.50 | 9.90 | 0.1500 | -853.0 | -618.9 | |
| 0.00 | 5.42 | 0.00 | 2.71 | 11.22 | 12.98 | -1.92 | 12.79 | 0.1494 | -1224.0 | -956.4 | |
| 0.00 | 2.32 | 0.00 | 1.16 | 11.49 | 12.83 | -2.08 | 13.35 | 0.1546 | -879.0 | -803.8 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 6.54 | 11.66 | -3.24 | 41.37 | 0.0854 | 839.0 | 688.3 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 12.87 | 11.54 | -3.37 | 18.26 | 0.1836 | -782.0 | -685.0 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 8.63 | 8.37 | -6.54 | 48.23 | 0.1517 | -739.0 | -630.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
