SDO HMI 2011-11-15 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.11 | 268.32 | 25.70 | 207.61 | 16.08 | 63.66 | 49.30 | 288.61 | 0.7710 | -791.6 | -302.6 | |
|
previous
or next observation for the same group /

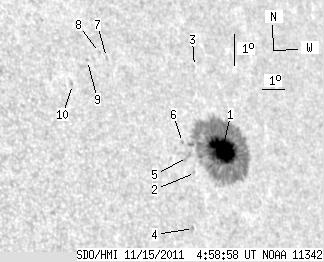

back to the solar disc SDO HMI 2011-11-15 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.11 | 256.28 | 25.70 | 198.69 | 16.05 | 63.77 | 49.41 | 288.54 | 0.7721 | -1065.6 | -308.6 | |
| 0.00 | 0.60 | 0.00 | 0.45 | 15.40 | 62.30 | 47.94 | 288.02 | 0.7550 | -628.0 | -653.7 | |
| 0.00 | 0.95 | 0.00 | 0.74 | 18.62 | 63.37 | 49.01 | 291.92 | 0.7733 | 422.0 | 335.1 | |
| 0.00 | 1.55 | 0.00 | 1.15 | 13.72 | 61.72 | 47.36 | 285.92 | 0.7455 | -660.0 | -488.1 | |
| 0.00 | 3.96 | 0.00 | 2.97 | 15.87 | 62.07 | 47.71 | 288.68 | 0.7535 | -721.0 | -605.1 | |
| 0.00 | 1.20 | 0.00 | 0.90 | 16.33 | 61.99 | 47.63 | 289.31 | 0.7536 | -613.0 | -563.8 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 19.04 | 59.46 | 45.10 | 293.59 | 0.7330 | 333.0 | 289.9 | |
| 0.00 | 1.29 | 0.00 | 0.93 | 19.21 | 59.20 | 44.84 | 293.89 | 0.7307 | 560.0 | 458.1 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 18.98 | 58.59 | 44.23 | 293.79 | 0.7233 | 605.0 | 560.3 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 18.26 | 57.71 | 43.35 | 293.13 | 0.7112 | 621.0 | 552.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
