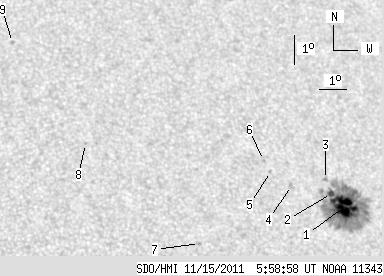

SDO HMI 2011-11-15 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.99 | 177.32 | 19.85 | 109.89 | 28.41 | 41.79 | 27.98 | 316.63 | 0.6032 | -769.7 | -355.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.81 | 165.21 | 17.88 | 102.50 | 28.26 | 42.11 | 28.30 | 316.12 | 0.6046 | -1121.2 | -383.0 | |
| 3.18 | -1.00 | 1.97 | -1.00 | 28.70 | 41.74 | 27.93 | 317.02 | 0.6049 | -727.8 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.55 | 29.17 | 41.65 | 27.83 | 317.71 | 0.6081 | -545.0 | -390.6 | |
| 0.00 | 2.75 | 0.00 | 1.69 | 29.00 | 40.30 | 26.48 | 318.77 | 0.5940 | -881.0 | -674.4 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 29.48 | 39.63 | 25.82 | 320.02 | 0.5924 | 657.0 | 384.7 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 29.85 | 39.47 | 25.66 | 320.65 | 0.5945 | -684.0 | -643.9 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 27.16 | 36.44 | 22.63 | 320.47 | 0.5401 | 843.0 | 685.1 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 30.53 | 33.02 | 19.20 | 328.74 | 0.5481 | 739.0 | 600.2 | |
| 0.00 | 1.98 | 0.00 | 1.20 | 34.01 | 31.05 | 17.23 | 334.68 | 0.5764 | 685.0 | 567.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
