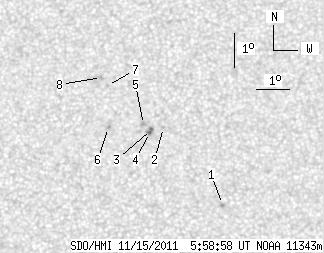

SDO HMI 2011-11-15 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 13.25 | 0.87 | 6.65 | 11.37 | 12.83 | -0.99 | 5.59 | 0.1506 | -725.4 | -554.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.77 | 8.99 | 15.23 | 1.42 | 347.10 | 0.1101 | 1008.0 | 721.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.30 | 13.46 | -0.35 | 2.37 | 0.1474 | -789.0 | -621.5 | |
| 0.43 | 3.53 | 0.22 | 1.77 | 11.24 | 13.10 | -0.72 | 4.82 | 0.1468 | -1194.0 | -965.1 | |
| 1.29 | -3.00 | 0.65 | -3.00 | 11.15 | 13.04 | -0.78 | 5.28 | 0.1453 | -1103.8 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.21 | 11.39 | 12.85 | -0.96 | 6.32 | 0.1498 | -1103.0 | -835.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 11.29 | 11.80 | -2.02 | 13.25 | 0.1513 | -840.0 | -640.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.56 | 11.76 | -2.06 | 11.76 | 0.1728 | -867.0 | -539.8 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 12.80 | 11.57 | -2.24 | 12.47 | 0.1775 | -944.0 | -732.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
