SDO HMI 2011-11-15 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.38 | 346.05 | 41.62 | 227.07 | -18.78 | 338.04 | -35.22 | 123.52 | 0.6548 | 335.7 | 221.4 | |
|
previous
or next observation for the same group /

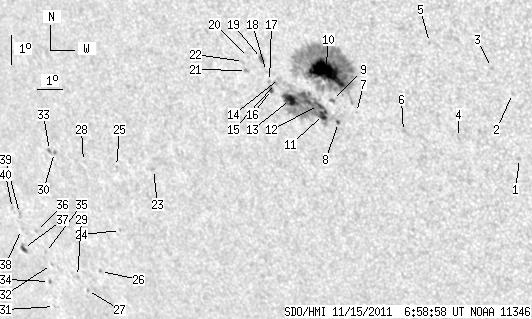

back to the solar disc SDO HMI 2011-11-15 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.78 | -20.53 | 346.03 | -27.23 | 132.43 | 0.5829 | 728.0 | 516.9 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -18.44 | 346.17 | -27.10 | 129.64 | 0.5634 | 705.0 | 463.8 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -17.63 | 345.57 | -27.70 | 127.88 | 0.5635 | 487.0 | 445.6 | |
| 0.00 | 1.81 | 0.00 | 1.12 | -19.90 | 343.97 | -29.30 | 129.62 | 0.5996 | 590.0 | 574.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -16.90 | 343.49 | -29.78 | 124.92 | 0.5817 | 601.0 | 461.9 | |
| 0.00 | 1.55 | 0.00 | 0.97 | -19.76 | 341.98 | -31.28 | 127.71 | 0.6200 | 701.0 | 552.6 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -19.20 | 340.36 | -32.91 | 125.65 | 0.6337 | 431.0 | 330.5 | |
| 1.29 | 1.81 | 0.83 | 1.17 | -19.54 | 339.60 | -33.66 | 125.54 | 0.6443 | -660.9 | -534.7 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -18.84 | 339.54 | -33.73 | 124.55 | 0.6403 | 705.0 | 583.3 | |
| 38.35 | 202.35 | 24.53 | 129.36 | -17.95 | 339.47 | -33.79 | 123.28 | 0.6352 | 1094.2 | 433.5 | |
| 5.16 | 92.36 | 3.35 | 60.30 | -19.30 | 339.09 | -34.18 | 124.84 | 0.6483 | 540.7 | -28.2 | |
| 3.53 | -11.00 | 2.29 | -11.00 | -19.02 | 338.97 | -34.30 | 124.37 | 0.6478 | 706.0 | 999999 | |
| 7.22 | -11.00 | 4.74 | -11.00 | -18.86 | 337.93 | -35.33 | 123.43 | 0.6581 | -783.7 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.35 | -18.20 | 337.67 | -35.60 | 122.36 | 0.6570 | 148.0 | 15.2 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -18.36 | 337.48 | -35.79 | 122.46 | 0.6601 | -724.0 | -576.4 | |
| 2.32 | 2.67 | 1.53 | 1.76 | -18.56 | 337.27 | -35.99 | 122.59 | 0.6636 | -624.8 | -745.8 | |
| 0.00 | 1.20 | 0.00 | 0.79 | -18.31 | 337.26 | -36.01 | 122.24 | 0.6622 | -724.0 | -586.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -17.99 | 337.22 | -36.05 | 121.78 | 0.6608 | 542.0 | 377.4 | |
| 1.29 | 2.49 | 0.85 | 1.64 | -17.58 | 337.12 | -36.15 | 121.16 | 0.6595 | 809.5 | 617.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -17.57 | 336.62 | -36.65 | 120.83 | 0.6650 | 367.0 | 313.4 | |
| 0.00 | 2.06 | 0.00 | 1.37 | -17.98 | 336.44 | -36.83 | 121.28 | 0.6694 | 597.0 | 516.9 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -17.70 | 336.39 | -36.87 | 120.86 | 0.6683 | 468.0 | 386.7 | |
| 0.00 | 1.38 | 0.00 | 1.01 | -21.31 | 331.67 | -41.60 | 122.74 | 0.7377 | -309.0 | -310.8 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -23.38 | 329.44 | -43.83 | 124.04 | 0.7694 | -700.0 | -620.5 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -21.27 | 330.09 | -43.18 | 121.85 | 0.7531 | 202.0 | 93.2 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -24.80 | 327.89 | -45.38 | 124.90 | 0.7901 | -509.0 | -405.3 | |
| 0.00 | 0.86 | 0.00 | 0.71 | -25.47 | 326.95 | -46.32 | 125.20 | 0.8013 | 275.0 | 264.1 | |
| 0.00 | 0.69 | 0.00 | 0.53 | -21.16 | 328.67 | -44.60 | 121.01 | 0.7664 | -681.0 | -613.4 | |
| 0.00 | 1.20 | 0.00 | 0.99 | -25.01 | 326.70 | -46.57 | 124.56 | 0.8014 | -457.0 | -344.9 | |
| 0.00 | 1.38 | 0.00 | 1.08 | -20.91 | 327.45 | -45.82 | 120.14 | 0.7770 | -720.0 | -664.1 | |
| 0.00 | 1.38 | 0.00 | 1.18 | -26.08 | 325.02 | -48.25 | 124.98 | 0.8201 | -229.0 | -195.6 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -24.65 | 325.63 | -47.64 | 123.65 | 0.8091 | -396.0 | -372.0 | |
| 1.38 | 1.89 | 1.08 | 1.49 | -20.86 | 327.24 | -46.03 | 119.98 | 0.7787 | -514.4 | -597.5 | |
| 0.95 | 1.46 | 0.80 | 1.24 | -25.23 | 325.23 | -48.04 | 124.13 | 0.8148 | -316.5 | -437.5 | |
| 0.00 | 1.12 | 0.00 | 0.94 | -24.26 | 325.53 | -47.73 | 123.16 | 0.8082 | -465.0 | -331.2 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -23.57 | 325.44 | -47.83 | 122.33 | 0.8063 | -591.0 | -532.1 | |
| 1.89 | 3.70 | 1.62 | 3.16 | -24.17 | 324.50 | -48.77 | 122.60 | 0.8167 | -268.5 | -405.6 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -23.53 | 324.72 | -48.54 | 121.98 | 0.8123 | -352.0 | -235.6 | |
| 0.00 | 3.44 | 0.00 | 2.88 | -23.00 | 324.89 | -48.38 | 121.44 | 0.8088 | -691.0 | -485.5 | |
| 0.00 | 1.46 | 0.00 | 1.23 | -22.84 | 324.62 | -48.65 | 121.15 | 0.8106 | -451.0 | -334.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
