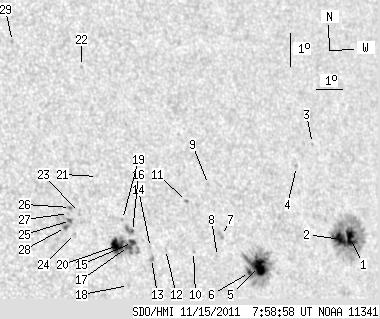

SDO HMI 2011-11-15 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.18 | 247.39 | 35.32 | 164.09 | 9.51 | 53.93 | 41.21 | 281.26 | 0.6635 | -149.1 | -171.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.26 | 102.33 | 5.79 | 71.75 | 9.56 | 57.65 | 44.93 | 280.67 | 0.7110 | -838.8 | -292.4 | |
| 8.17 | -1.00 | 5.69 | -1.00 | 9.55 | 57.22 | 44.50 | 280.71 | 0.7058 | -1102.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 12.46 | 56.59 | 43.87 | 284.93 | 0.7027 | -651.0 | -513.9 | |
| 0.00 | 1.29 | 0.00 | 0.88 | 11.79 | 55.78 | 43.06 | 284.15 | 0.6916 | -732.0 | -587.6 | |
| 14.02 | 67.93 | 9.23 | 44.75 | 8.86 | 53.79 | 41.07 | 280.19 | 0.6619 | -1069.2 | -416.6 | |
| 1.46 | -5.00 | 0.96 | -5.00 | 8.69 | 53.37 | 40.65 | 280.00 | 0.6562 | -867.6 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.06 | 9.83 | 52.42 | 39.70 | 281.91 | 0.6456 | -659.0 | -635.3 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 9.21 | 52.18 | 39.46 | 280.99 | 0.6414 | -501.0 | -385.0 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 11.37 | 52.15 | 39.43 | 284.34 | 0.6450 | -633.0 | -563.1 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 9.38 | 51.27 | 38.55 | 281.44 | 0.6296 | 119.0 | 188.9 | |
| 0.00 | 1.46 | 0.00 | 0.93 | 10.88 | 51.22 | 38.49 | 283.82 | 0.6318 | -765.0 | -657.6 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 9.47 | 50.21 | 37.49 | 281.81 | 0.6156 | 277.0 | 232.2 | |
| 0.00 | 2.49 | 0.00 | 1.55 | 9.22 | 49.65 | 36.93 | 281.51 | 0.6075 | 712.0 | 538.4 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 9.55 | 49.65 | 36.93 | 282.05 | 0.6082 | 601.0 | 413.2 | |
| 2.67 | 36.20 | 1.65 | 22.26 | 9.72 | 49.00 | 36.28 | 282.48 | 0.5996 | 697.8 | 527.2 | |
| 1.03 | 5.07 | 0.64 | 3.13 | 10.05 | 49.04 | 36.32 | 283.01 | 0.6008 | -566.2 | -232.7 | |
| 3.27 | -15.00 | 2.01 | -15.00 | 9.60 | 48.84 | 36.11 | 282.33 | 0.5971 | 884.9 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 8.44 | 48.70 | 35.98 | 280.42 | 0.5931 | 559.0 | 474.9 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 10.42 | 48.72 | 35.99 | 283.71 | 0.5972 | -765.0 | -572.2 | |
| 12.21 | -15.00 | 7.49 | -15.00 | 9.65 | 48.43 | 35.71 | 282.50 | 0.5916 | 969.6 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 11.73 | 47.97 | 35.25 | 286.12 | 0.5904 | 566.0 | 438.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 15.06 | 47.93 | 35.21 | 291.58 | 0.6010 | 640.0 | 542.6 | |
| 0.00 | 2.15 | 0.00 | 1.30 | 10.67 | 47.16 | 34.44 | 284.59 | 0.5764 | 552.0 | 429.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 10.05 | 46.93 | 34.21 | 283.58 | 0.5718 | 841.0 | 670.6 | |
| 1.63 | 12.04 | 0.98 | 7.23 | 10.44 | 46.80 | 34.08 | 284.30 | 0.5709 | 789.2 | 732.6 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 10.83 | 46.85 | 34.13 | 284.96 | 0.5726 | 701.0 | 621.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 10.65 | 46.75 | 34.03 | 284.68 | 0.5708 | 743.0 | 618.8 | |
| 1.46 | -25.00 | 0.88 | -25.00 | 10.24 | 46.59 | 33.87 | 284.01 | 0.5675 | 894.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 15.89 | 45.52 | 32.80 | 294.11 | 0.5730 | 736.0 | 600.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
