SDO HMI 2011-11-15 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.90 | 38.37 | 7.20 | 21.27 | 8.34 | 346.34 | -26.39 | 77.06 | 0.4529 | 448.2 | 356.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

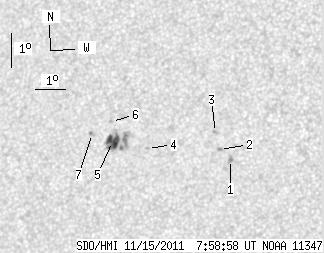

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.27 | 0.00 | 1.77 | 7.89 | 349.60 | -23.12 | 76.73 | 0.4014 | -1047.0 | -794.4 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 8.18 | 349.22 | -23.50 | 76.20 | 0.4082 | -932.0 | -765.9 | |
| 0.00 | 2.15 | 0.00 | 1.17 | 8.68 | 349.06 | -23.66 | 75.08 | 0.4124 | 781.0 | 542.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 8.16 | 346.85 | -25.88 | 77.29 | 0.4447 | 829.0 | 606.3 | |
| 12.90 | 26.92 | 7.20 | 15.00 | 8.34 | 345.66 | -27.06 | 77.34 | 0.4633 | 889.5 | 827.9 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 8.94 | 345.58 | -27.14 | 76.11 | 0.4662 | 600.0 | 436.2 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 8.57 | 344.97 | -27.76 | 77.13 | 0.4743 | -720.0 | -592.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
