SDO HMI 2011-11-15 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.00 | 0.00 | 8.02 | 11.36 | 11.28 | -0.35 | 3.17 | 0.1547 | -936.4 | -744.6 | |
|
previous
or next observation for the same group /

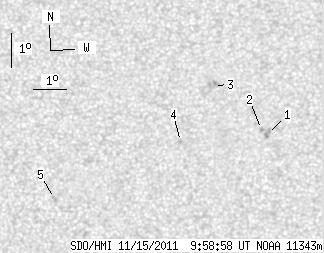

back to the solar disc SDO HMI 2011-11-15 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.56 | 0.00 | 2.28 | 11.18 | 13.21 | 1.58 | 349.44 | 0.1482 | -1001.0 | -860.0 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 11.30 | 13.03 | 1.40 | 350.76 | 0.1497 | -1113.0 | -857.6 | |
| 0.00 | 5.85 | 0.00 | 2.94 | 12.62 | 11.58 | -0.05 | 0.30 | 0.1707 | -862.0 | -730.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.94 | 10.58 | -1.05 | 7.26 | 0.1427 | -873.0 | -669.7 | |
| 0.00 | 2.84 | 0.00 | 1.42 | 9.23 | 6.80 | -4.83 | 36.73 | 0.1397 | -833.0 | -552.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
