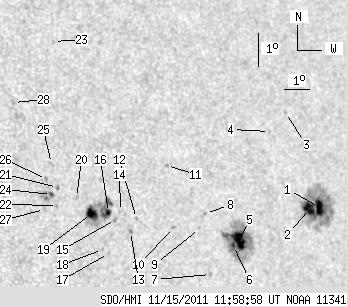

SDO HMI 2011-11-15 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.10 | 254.24 | 31.05 | 174.13 | 9.48 | 53.76 | 43.22 | 280.91 | 0.6887 | -213.6 | -77.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.85 | 97.38 | 6.46 | 71.00 | 9.62 | 57.64 | 47.10 | 280.50 | 0.7369 | -799.7 | -222.1 | |
| 9.88 | -1.00 | 7.16 | -1.00 | 9.61 | 57.19 | 46.66 | 280.53 | 0.7317 | -1045.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 12.51 | 56.74 | 46.20 | 284.56 | 0.7303 | -625.0 | -504.8 | |
| 0.00 | 0.34 | 0.00 | 0.24 | 11.97 | 55.91 | 45.38 | 283.97 | 0.7198 | -640.0 | -601.0 | |
| 13.75 | 74.09 | 9.42 | 50.74 | 8.79 | 54.07 | 43.53 | 279.77 | 0.6930 | -1018.5 | -369.8 | |
| 1.20 | -5.00 | 0.82 | -5.00 | 8.62 | 53.79 | 43.26 | 279.56 | 0.6894 | -1042.4 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.32 | 7.79 | 52.74 | 42.21 | 278.47 | 0.6753 | -676.0 | -557.9 | |
| 0.00 | 1.12 | 0.00 | 0.75 | 9.61 | 52.79 | 42.26 | 281.15 | 0.6781 | -693.0 | -617.7 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 9.17 | 52.48 | 41.95 | 280.55 | 0.6736 | -741.0 | -594.1 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 9.23 | 51.45 | 40.91 | 280.81 | 0.6604 | 611.0 | 392.6 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 11.09 | 51.46 | 40.92 | 283.60 | 0.6637 | -661.0 | -640.4 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 9.55 | 50.03 | 39.49 | 281.54 | 0.6424 | 496.0 | 406.4 | |
| 0.00 | 1.63 | 0.00 | 1.05 | 9.17 | 49.74 | 39.21 | 281.00 | 0.6381 | 554.0 | 502.1 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 9.78 | 49.44 | 38.90 | 282.01 | 0.6350 | 612.0 | 501.8 | |
| 0.00 | 2.15 | 0.00 | 1.37 | 9.54 | 49.21 | 38.68 | 281.69 | 0.6317 | 609.0 | 426.4 | |
| 2.06 | 44.61 | 1.31 | 28.21 | 9.76 | 48.97 | 38.44 | 282.08 | 0.6288 | 666.3 | 380.3 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 8.54 | 48.82 | 38.28 | 280.17 | 0.6247 | 572.0 | 496.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 8.66 | 48.60 | 38.07 | 280.41 | 0.6220 | 653.0 | 547.7 | |
| 7.56 | -16.00 | 4.76 | -16.00 | 9.75 | 48.32 | 37.78 | 282.21 | 0.6201 | 1023.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.97 | 10.24 | 47.82 | 37.28 | 283.12 | 0.6143 | 500.0 | 509.8 | |
| 0.00 | 1.46 | 0.00 | 0.91 | 10.56 | 47.14 | 36.61 | 283.81 | 0.6059 | 581.0 | 474.2 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 10.03 | 47.07 | 36.53 | 282.95 | 0.6038 | 902.0 | 683.0 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 14.95 | 47.74 | 37.20 | 290.61 | 0.6264 | 684.0 | 553.8 | |
| 1.80 | 9.97 | 1.12 | 6.16 | 10.36 | 46.89 | 36.35 | 283.54 | 0.6020 | 784.1 | 765.5 | |
| 0.00 | 2.23 | 0.00 | 1.39 | 11.29 | 47.02 | 36.48 | 285.02 | 0.6060 | 507.0 | 402.2 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 10.81 | 46.76 | 36.23 | 284.32 | 0.6014 | 709.0 | 602.2 | |
| 0.00 | 2.58 | 0.00 | 1.59 | 9.92 | 46.57 | 36.03 | 282.90 | 0.5967 | 705.0 | 538.5 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 13.16 | 45.89 | 35.35 | 288.46 | 0.5962 | 698.0 | 539.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
