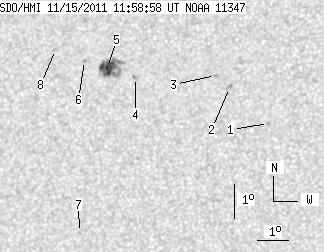

SDO HMI 2011-11-15 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.82 | 41.61 | 8.66 | 22.70 | 8.19 | 346.13 | -24.41 | 76.54 | 0.4224 | 549.7 | 477.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.45 | 6.81 | 351.07 | -19.47 | 77.71 | 0.3402 | 617.0 | 497.7 | |
| 0.00 | 2.32 | 0.00 | 1.23 | 7.85 | 349.78 | -20.76 | 75.51 | 0.3642 | -934.0 | -735.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 8.20 | 349.31 | -21.23 | 74.87 | 0.3729 | -797.0 | -607.6 | |
| 0.00 | 2.06 | 0.00 | 1.12 | 8.10 | 346.72 | -23.82 | 76.51 | 0.4129 | 814.0 | 579.7 | |
| 15.82 | 31.46 | 8.66 | 17.21 | 8.37 | 345.78 | -24.76 | 76.29 | 0.4283 | 935.0 | 759.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 8.57 | 345.00 | -25.53 | 76.20 | 0.4407 | -755.0 | -627.0 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 3.46 | 345.10 | -25.44 | 87.90 | 0.4309 | 765.0 | 614.3 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 8.87 | 344.01 | -26.52 | 75.95 | 0.4567 | 801.0 | 577.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
