SDO HMI 2011-11-15 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.58 | 36.88 | 7.40 | 20.03 | 8.10 | 346.11 | -23.87 | 76.52 | 0.4140 | 552.1 | 600.5 | |
|
previous
or next observation for the same group /

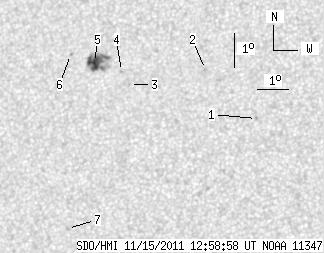

back to the solar disc SDO HMI 2011-11-15 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.72 | 6.78 | 351.09 | -18.90 | 77.45 | 0.3310 | 644.0 | 431.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 8.21 | 349.40 | -20.59 | 74.44 | 0.3629 | -636.0 | -602.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 7.72 | 346.98 | -23.01 | 77.03 | 0.3992 | -632.0 | -412.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 8.10 | 346.69 | -23.29 | 76.24 | 0.4048 | 920.0 | 691.6 | |
| 13.58 | 29.99 | 7.40 | 16.34 | 8.36 | 345.79 | -24.19 | 76.07 | 0.4196 | 956.2 | 796.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 8.58 | 344.99 | -25.00 | 75.93 | 0.4327 | -748.0 | -590.6 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 3.41 | 345.14 | -24.85 | 88.00 | 0.4215 | 775.0 | 636.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
