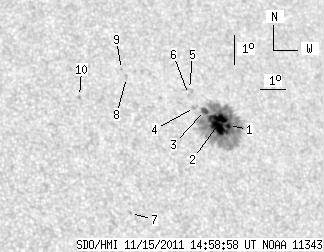

SDO HMI 2011-11-15 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.19 | 151.21 | 18.33 | 98.28 | 28.39 | 41.70 | 32.81 | 312.62 | 0.6500 | -908.5 | -375.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.98 | 141.77 | 1.29 | 92.24 | 28.23 | 42.23 | 33.34 | 312.00 | 0.6540 | -845.9 | -371.1 | |
| 22.77 | -1.00 | 14.81 | -1.00 | 28.30 | 41.85 | 32.96 | 312.38 | 0.6508 | -1144.1 | 999999 | |
| 3.44 | -1.00 | 2.23 | -1.00 | 28.74 | 41.44 | 32.55 | 313.25 | 0.6501 | -736.0 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.50 | 28.85 | 41.08 | 32.19 | 313.67 | 0.6474 | -789.0 | -643.3 | |
| 0.00 | 1.89 | 0.00 | 1.23 | 29.45 | 41.09 | 32.20 | 314.42 | 0.6520 | -472.0 | -445.3 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 29.28 | 40.99 | 32.10 | 314.29 | 0.6498 | -601.0 | -494.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 25.47 | 37.58 | 28.69 | 312.01 | 0.5855 | -714.0 | -666.3 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 29.91 | 38.73 | 29.85 | 316.89 | 0.6336 | -727.0 | -611.7 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 30.18 | 38.63 | 29.74 | 317.32 | 0.6349 | -692.0 | -580.6 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 29.32 | 36.72 | 27.83 | 317.93 | 0.6098 | 659.0 | 532.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
