SDO HMI 2011-11-15 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.30 | 36.68 | 9.68 | 19.41 | 8.40 | 346.11 | -20.02 | 73.51 | 0.3548 | 806.1 | 662.4 | |
|
previous
or next observation for the same group /

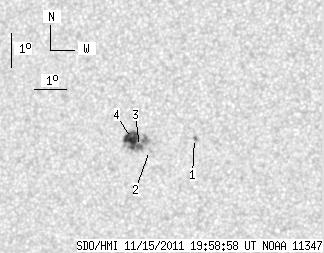

back to the solar disc SDO HMI 2011-11-15 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 1.89 | 0.31 | 0.99 | 8.48 | 347.95 | -18.18 | 71.87 | 0.3262 | -669.0 | -799.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 8.10 | 346.54 | -19.59 | 74.06 | 0.3467 | 844.0 | 729.6 | |
| 2.58 | 33.42 | 1.36 | 17.69 | 8.21 | 346.22 | -19.91 | 73.96 | 0.3523 | 1101.3 | 775.1 | |
| 15.12 | -3.00 | 8.01 | -3.00 | 8.44 | 345.95 | -20.18 | 73.51 | 0.3575 | 992.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
