SDO HMI 2011-11-15 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.76 | 221.40 | 32.20 | 209.84 | 16.07 | 63.60 | 58.02 | 287.14 | 0.8551 | -724.6 | -252.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

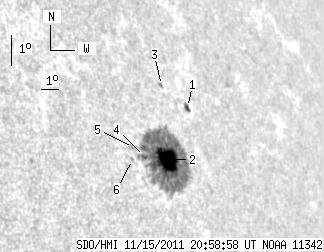

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.92 | 4.04 | 2.95 | 4.08 | 17.53 | 65.64 | 60.07 | 288.56 | 0.8737 | -311.7 | -317.8 | |
| 29.04 | 210.65 | 27.59 | 199.57 | 16.01 | 63.66 | 58.08 | 287.06 | 0.8556 | -823.6 | -254.6 | |
| 0.00 | 1.55 | 0.00 | 1.51 | 18.26 | 64.44 | 58.86 | 289.56 | 0.8647 | 436.0 | 335.7 | |
| 1.80 | -2.00 | 1.66 | -2.00 | 16.15 | 62.39 | 56.82 | 287.40 | 0.8446 | -800.1 | 999999 | |
| 0.00 | 4.04 | 0.00 | 3.67 | 16.44 | 61.90 | 56.33 | 287.82 | 0.8406 | -329.0 | -318.4 | |
| 0.00 | 1.12 | 0.00 | 1.01 | 16.08 | 61.69 | 56.11 | 287.43 | 0.8382 | -641.0 | -520.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
