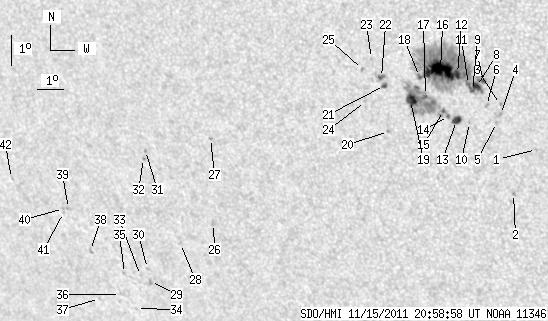

SDO HMI 2011-11-15 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.64 | 336.87 | 34.20 | 202.30 | -18.65 | 338.38 | -27.20 | 129.97 | 0.5648 | 309.2 | 276.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.86 | -20.28 | 342.32 | -23.25 | 136.37 | 0.5388 | 665.0 | 564.2 | |
| 0.00 | 1.55 | 0.00 | 0.93 | -21.73 | 341.28 | -24.30 | 137.09 | 0.5637 | 719.0 | 612.9 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -18.86 | 341.31 | -24.27 | 133.19 | 0.5357 | 830.0 | 674.6 | |
| 0.00 | 2.32 | 0.00 | 1.36 | -19.18 | 341.26 | -24.32 | 133.60 | 0.5392 | 811.0 | 665.1 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -19.44 | 341.08 | -24.50 | 133.76 | 0.5436 | 664.0 | 447.1 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -18.90 | 340.82 | -24.76 | 132.71 | 0.5413 | 784.0 | 605.0 | |
| 1.55 | 213.23 | 0.90 | 125.75 | -18.14 | 340.83 | -24.74 | 131.61 | 0.5341 | 982.6 | 504.7 | |
| 4.21 | -7.00 | 2.47 | -7.00 | -18.30 | 340.57 | -25.01 | 131.56 | 0.5386 | 990.1 | 999999 | |
| 1.80 | -7.00 | 1.06 | -7.00 | -18.43 | 340.41 | -25.17 | 131.58 | 0.5415 | 686.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -19.46 | 340.14 | -25.44 | 132.76 | 0.5538 | -357.0 | -349.0 | |
| 0.34 | -7.00 | 0.20 | -7.00 | -18.24 | 340.30 | -25.28 | 131.19 | 0.5410 | 926.8 | 999999 | |
| 2.06 | -7.00 | 1.21 | -7.00 | -17.90 | 339.97 | -25.60 | 130.33 | 0.5416 | 1197.0 | 999999 | |
| 5.41 | 6.53 | 3.22 | 3.89 | -19.41 | 339.69 | -25.88 | 132.21 | 0.5581 | 791.8 | 431.2 | |
| 0.43 | 72.77 | 0.26 | 43.61 | -19.28 | 339.43 | -26.14 | 131.77 | 0.5598 | 716.4 | -41.0 | |
| 1.03 | -14.00 | 0.62 | -14.00 | -19.09 | 339.29 | -26.29 | 131.35 | 0.5597 | 736.7 | 999999 | |
| 26.20 | -7.00 | 15.48 | -7.00 | -17.82 | 339.40 | -26.18 | 129.61 | 0.5474 | 1215.9 | 999999 | |
| 0.95 | -14.00 | 0.56 | -14.00 | -18.63 | 338.74 | -26.84 | 130.13 | 0.5617 | 542.9 | 999999 | |
| 1.20 | -7.00 | 0.72 | -7.00 | -18.03 | 338.63 | -26.95 | 129.14 | 0.5578 | 669.6 | 999999 | |
| 8.16 | -14.00 | 4.91 | -14.00 | -18.80 | 338.18 | -27.40 | 129.82 | 0.5693 | -872.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -19.82 | 337.21 | -28.37 | 130.31 | 0.5884 | 831.0 | 731.3 | |
| 1.98 | 2.92 | 1.19 | 1.77 | -18.35 | 337.34 | -28.23 | 128.36 | 0.5749 | -581.2 | -428.8 | |
| 2.32 | 5.76 | 1.40 | 3.48 | -18.09 | 337.28 | -28.30 | 127.94 | 0.5735 | -835.7 | -691.1 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -17.50 | 337.03 | -28.55 | 126.84 | 0.5717 | 449.0 | 486.7 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -18.87 | 336.57 | -29.01 | 128.40 | 0.5878 | -788.0 | -672.5 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -17.86 | 336.65 | -28.93 | 127.01 | 0.5788 | 846.0 | 643.1 | |
| 0.00 | 2.23 | 0.00 | 1.52 | -23.01 | 329.83 | -35.75 | 128.45 | 0.6890 | -691.0 | -500.8 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -20.22 | 330.50 | -35.08 | 125.38 | 0.6637 | -649.0 | -569.7 | |
| 0.00 | 1.37 | 0.00 | 0.96 | -23.71 | 328.27 | -37.31 | 128.25 | 0.7089 | -659.0 | -467.0 | |
| 0.00 | 1.98 | 0.00 | 1.43 | -25.03 | 326.55 | -39.02 | 128.70 | 0.7334 | -665.0 | -525.9 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -24.60 | 326.59 | -38.99 | 128.21 | 0.7304 | -662.0 | -569.5 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -20.69 | 327.81 | -37.77 | 124.19 | 0.6950 | -629.0 | -591.8 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -20.96 | 327.65 | -37.93 | 124.42 | 0.6982 | -667.0 | -612.2 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -24.84 | 326.20 | -39.37 | 128.26 | 0.7355 | -707.0 | -627.2 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -25.97 | 325.58 | -39.99 | 129.19 | 0.7479 | -491.0 | -414.8 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -24.80 | 325.54 | -40.04 | 127.80 | 0.7414 | -359.0 | -305.7 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -25.51 | 325.08 | -40.50 | 128.36 | 0.7498 | -482.0 | -410.1 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -25.68 | 324.09 | -41.49 | 127.97 | 0.7597 | -404.0 | -297.4 | |
| 0.00 | 1.55 | 0.00 | 1.15 | -24.07 | 324.36 | -41.22 | 126.25 | 0.7483 | -451.0 | -442.3 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -22.70 | 323.93 | -41.64 | 124.38 | 0.7451 | -594.0 | -502.8 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -22.71 | 323.71 | -41.86 | 124.26 | 0.7472 | -507.0 | -446.1 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -22.85 | 323.66 | -41.91 | 124.39 | 0.7484 | -417.0 | -326.9 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -21.80 | 321.78 | -43.80 | 122.15 | 0.7613 | -562.0 | -415.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
