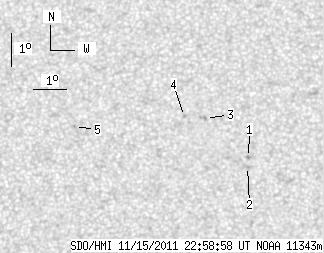

SDO HMI 2011-11-15 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.61 | 0.00 | 3.37 | 11.91 | 12.29 | 7.81 | 320.52 | 0.2100 | -965.6 | -723.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.92 | 11.31 | 13.71 | 9.23 | 313.36 | 0.2174 | -1015.0 | -757.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 11.04 | 13.67 | 9.20 | 312.55 | 0.2139 | -998.0 | -714.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 12.49 | 12.43 | 7.96 | 321.32 | 0.2172 | -838.0 | -618.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 12.56 | 11.79 | 7.31 | 323.81 | 0.2114 | -937.0 | -702.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.27 | 8.42 | 3.95 | 337.75 | 0.1787 | -1040.0 | -851.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
