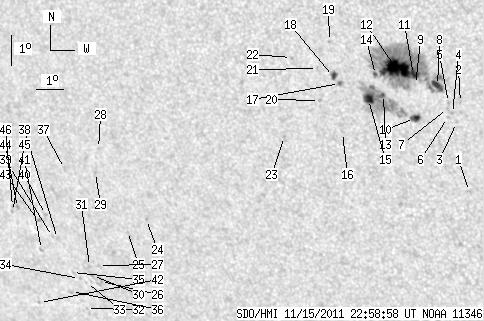

SDO HMI 2011-11-15 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.06 | 330.99 | 33.51 | 197.67 | -18.75 | 337.95 | -26.53 | 130.83 | 0.5577 | 255.1 | 257.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-15 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.07 | -21.71 | 341.29 | -23.18 | 138.35 | 0.5525 | 712.0 | 506.0 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -18.84 | 341.43 | -23.04 | 134.59 | 0.5222 | 860.0 | 638.4 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -19.49 | 341.20 | -23.27 | 135.23 | 0.5310 | 569.0 | 382.9 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -19.20 | 341.11 | -23.36 | 134.72 | 0.5292 | 811.0 | 594.0 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -18.85 | 341.02 | -23.45 | 134.12 | 0.5267 | 767.0 | 578.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -19.33 | 340.92 | -23.56 | 134.68 | 0.5325 | 545.0 | 452.7 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -19.04 | 340.96 | -23.51 | 134.32 | 0.5292 | 527.0 | 375.6 | |
| 6.19 | 202.10 | 3.59 | 118.02 | -18.32 | 340.73 | -23.75 | 132.99 | 0.5247 | 965.4 | 519.3 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -18.30 | 339.97 | -24.50 | 132.11 | 0.5328 | 25.0 | 60.5 | |
| 4.64 | 5.84 | 2.74 | 3.44 | -19.39 | 339.77 | -24.70 | 133.45 | 0.5452 | 791.6 | 756.3 | |
| 3.09 | -8.00 | 1.80 | -8.00 | -17.98 | 339.95 | -24.52 | 131.62 | 0.5301 | 1049.2 | 999999 | |
| 29.13 | -8.00 | 17.05 | -8.00 | -17.80 | 339.40 | -25.08 | 130.74 | 0.5347 | 1212.6 | 999999 | |
| 1.29 | 73.72 | 0.76 | 43.74 | -18.64 | 338.82 | -25.66 | 131.35 | 0.5487 | 535.5 | -25.3 | |
| 1.55 | -8.00 | 0.91 | -8.00 | -18.01 | 338.64 | -25.83 | 130.24 | 0.5450 | 617.9 | 999999 | |
| 6.79 | -13.00 | 4.04 | -13.00 | -18.81 | 338.26 | -26.21 | 131.02 | 0.5562 | -937.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -19.90 | 337.16 | -27.32 | 131.42 | 0.5777 | 759.0 | 581.2 | |
| 1.72 | 2.66 | 1.03 | 1.59 | -18.33 | 337.33 | -27.14 | 129.37 | 0.5624 | -664.1 | -456.6 | |
| 2.66 | 4.55 | 1.59 | 2.72 | -18.11 | 337.16 | -27.31 | 128.89 | 0.5625 | -817.0 | -763.9 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -17.00 | 337.20 | -27.27 | 127.28 | 0.5529 | 742.0 | 613.8 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -18.89 | 336.53 | -27.95 | 129.40 | 0.5760 | -824.0 | -631.2 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -17.87 | 336.63 | -27.84 | 128.03 | 0.5664 | 705.0 | 661.2 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -17.54 | 335.77 | -28.70 | 126.75 | 0.5737 | 568.0 | 516.4 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -20.08 | 335.04 | -29.43 | 129.67 | 0.6019 | 591.0 | 465.2 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -22.94 | 329.10 | -35.38 | 128.62 | 0.6848 | -827.0 | -647.0 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -23.36 | 328.21 | -36.26 | 128.51 | 0.6964 | -548.0 | -445.5 | |
| 0.00 | 3.78 | 0.00 | 2.70 | -25.07 | 326.52 | -37.95 | 129.43 | 0.7236 | -595.0 | -528.5 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -24.53 | 326.63 | -37.84 | 128.87 | 0.7192 | -675.0 | -634.9 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -20.66 | 327.86 | -36.61 | 124.89 | 0.6827 | -645.0 | -438.7 | |
| 0.00 | 1.20 | 0.00 | 0.82 | -21.45 | 327.51 | -36.96 | 125.67 | 0.6912 | -607.0 | -501.3 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -24.88 | 326.25 | -38.22 | 129.03 | 0.7249 | -622.0 | -603.0 | |
| 0.00 | 1.37 | 0.00 | 0.98 | -24.58 | 326.24 | -38.23 | 128.67 | 0.7232 | -685.0 | -555.8 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -26.01 | 325.57 | -38.90 | 129.91 | 0.7382 | -507.0 | -413.4 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -25.12 | 325.91 | -38.56 | 129.10 | 0.7296 | -306.0 | -249.8 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -25.00 | 325.67 | -38.81 | 128.80 | 0.7311 | -458.0 | -398.9 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -24.80 | 325.44 | -39.03 | 128.43 | 0.7320 | -452.0 | -358.4 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -25.45 | 325.15 | -39.32 | 129.00 | 0.7386 | -544.0 | -438.2 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -21.36 | 326.29 | -38.18 | 124.76 | 0.7031 | -523.0 | -446.8 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -23.68 | 325.23 | -39.25 | 126.95 | 0.7274 | -556.0 | -471.7 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -23.62 | 325.04 | -39.43 | 126.77 | 0.7288 | -454.0 | -357.2 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -22.90 | 325.00 | -39.47 | 125.87 | 0.7250 | -666.0 | -595.4 | |
| 0.00 | 1.55 | 0.00 | 1.13 | -24.07 | 324.41 | -40.07 | 126.92 | 0.7375 | -336.0 | -420.7 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -25.87 | 323.60 | -40.87 | 128.54 | 0.7551 | -440.0 | -331.2 | |
| 0.00 | 1.55 | 0.00 | 1.12 | -23.11 | 324.63 | -39.84 | 125.90 | 0.7298 | -633.0 | -543.8 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -22.71 | 323.89 | -40.58 | 124.98 | 0.7347 | -766.0 | -586.0 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -22.85 | 323.63 | -40.85 | 124.99 | 0.7381 | -419.0 | -357.6 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -22.68 | 323.69 | -40.79 | 124.83 | 0.7366 | -505.0 | -430.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
