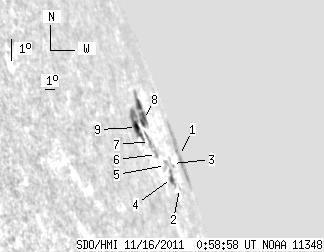

SDO HMI 2011-11-16 00:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.50 | 79.75 | 40.79 | 410.02 | 19.66 | 88.33 | 84.96 | 289.53 | 0.9941 | -243.6 | -86.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 00:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.86 | 0.00 | 234.99 | 19.31 | 91.15 | 87.78 | 289.21 | 0.9989 | 91.0 | -86.9 | |
| 0.00 | 0.69 | 0.00 | 2.82 | 18.47 | 87.04 | 83.67 | 288.27 | 0.9933 | 51.0 | 61.1 | |
| 0.00 | 0.86 | 0.00 | 3.77 | 19.23 | 87.43 | 84.06 | 289.05 | 0.9941 | -487.0 | -464.1 | |
| 1.98 | 7.13 | 7.03 | 26.05 | 18.83 | 85.93 | 82.56 | 288.63 | 0.9910 | -359.5 | -97.3 | |
| 0.00 | 3.95 | 0.00 | 13.75 | 19.26 | 85.59 | 82.22 | 289.06 | 0.9903 | -409.0 | -416.5 | |
| 0.00 | 2.75 | 0.00 | 8.44 | 19.65 | 84.55 | 81.18 | 289.46 | 0.9877 | -318.0 | -260.3 | |
| 0.00 | 6.45 | 0.00 | 19.01 | 20.08 | 84.10 | 80.73 | 289.90 | 0.9866 | 43.0 | -5.7 | |
| 7.65 | 35.06 | 23.69 | 101.19 | 20.76 | 84.49 | 81.12 | 290.59 | 0.9876 | -483.3 | 0.5 | |
| 3.87 | -8.00 | 10.07 | -8.00 | 20.59 | 82.75 | 79.38 | 290.44 | 0.9828 | 358.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
