SDO HMI 2011-11-16 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.94 | 182.14 | 31.17 | 148.52 | 9.39 | 54.64 | 52.36 | 279.77 | 0.7937 | -158.8 | -148.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

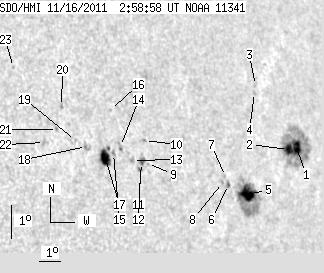

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.48 | 76.67 | 6.51 | 66.65 | 9.76 | 57.52 | 55.24 | 279.96 | 0.8243 | -674.3 | -209.5 | |
| 5.76 | -1.00 | 4.96 | -1.00 | 9.72 | 57.08 | 54.81 | 279.93 | 0.8200 | -960.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.87 | 11.69 | 55.89 | 53.62 | 282.46 | 0.8096 | -637.0 | -500.8 | |
| 0.00 | 1.12 | 0.00 | 0.94 | 11.48 | 55.78 | 53.51 | 282.22 | 0.8084 | -575.0 | -487.5 | |
| 12.38 | 57.85 | 10.06 | 47.05 | 8.46 | 54.72 | 52.45 | 278.54 | 0.7952 | -869.1 | -331.6 | |
| 0.60 | 2.23 | 0.48 | 1.78 | 8.79 | 53.85 | 51.58 | 279.02 | 0.7863 | -625.6 | -519.9 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 9.03 | 53.75 | 51.48 | 279.34 | 0.7854 | -711.0 | -604.5 | |
| 0.00 | 1.63 | 0.00 | 1.29 | 8.86 | 53.58 | 51.30 | 279.13 | 0.7834 | -652.0 | -576.5 | |
| 0.00 | 0.34 | 0.00 | 0.26 | 9.55 | 50.21 | 47.94 | 280.35 | 0.7466 | 232.0 | 307.0 | |
| 0.00 | 1.20 | 0.00 | 0.89 | 10.24 | 50.21 | 47.94 | 281.28 | 0.7473 | 485.0 | 359.1 | |
| 1.55 | 3.87 | 1.14 | 2.86 | 9.59 | 49.95 | 47.68 | 280.44 | 0.7436 | 648.3 | 454.9 | |
| 0.00 | 1.55 | 0.00 | 1.14 | 9.38 | 49.87 | 47.59 | 280.17 | 0.7425 | 650.0 | 574.9 | |
| 0.00 | 2.32 | 0.00 | 1.70 | 9.66 | 49.56 | 47.29 | 280.58 | 0.7392 | 648.0 | 561.3 | |
| 0.00 | 2.75 | 0.00 | 2.00 | 10.10 | 49.11 | 46.84 | 281.23 | 0.7345 | 511.0 | 332.4 | |
| 0.00 | 2.58 | 0.00 | 1.86 | 9.90 | 48.76 | 46.49 | 281.00 | 0.7302 | 401.0 | 282.3 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 11.22 | 48.89 | 46.62 | 282.78 | 0.7334 | -545.0 | -482.2 | |
| 11.17 | 14.27 | 8.02 | 10.24 | 9.76 | 48.39 | 46.12 | 280.87 | 0.7256 | 783.4 | 548.5 | |
| 0.00 | 3.95 | 0.00 | 2.80 | 10.15 | 47.63 | 45.36 | 281.50 | 0.7172 | 774.0 | 577.4 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 10.34 | 47.20 | 44.93 | 281.84 | 0.7122 | 578.0 | 492.2 | |
| 0.00 | 1.81 | 0.00 | 1.26 | 11.38 | 46.80 | 44.53 | 283.36 | 0.7089 | 687.0 | 550.4 | |
| 0.00 | 1.03 | 0.00 | 0.72 | 10.70 | 46.50 | 44.23 | 282.45 | 0.7042 | 673.0 | 584.3 | |
| 0.00 | 2.15 | 0.00 | 1.48 | 10.33 | 45.89 | 43.61 | 282.03 | 0.6962 | 803.0 | 533.4 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 12.61 | 45.03 | 42.76 | 285.48 | 0.6898 | 669.0 | 582.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
