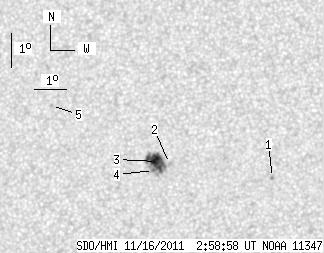

SDO HMI 2011-11-16 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.94 | 33.10 | 10.32 | 17.13 | 8.39 | 346.28 | -16.00 | 69.89 | 0.2915 | 886.4 | 582.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.61 | 7.94 | 349.86 | -12.42 | 66.82 | 0.2327 | -912.0 | -794.7 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 8.32 | 346.66 | -15.61 | 69.71 | 0.2851 | 821.0 | 738.2 | |
| 19.08 | 29.23 | 9.88 | 15.13 | 8.37 | 346.26 | -16.02 | 69.98 | 0.2918 | 1101.5 | 729.4 | |
| 0.86 | -3.00 | 0.44 | -3.00 | 8.10 | 346.17 | -16.10 | 70.95 | 0.2917 | 753.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 9.99 | 342.86 | -19.41 | 68.58 | 0.3532 | 816.0 | 608.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
