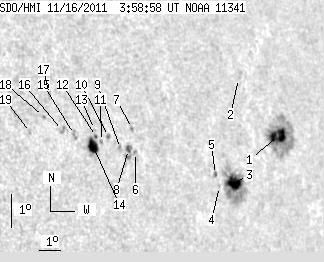

SDO HMI 2011-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.38 | 180.25 | 34.31 | 148.63 | 9.38 | 54.62 | 52.90 | 279.71 | 0.7992 | -169.4 | -117.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.61 | 76.33 | 12.83 | 67.24 | 9.77 | 57.35 | 55.63 | 279.95 | 0.8280 | -806.3 | -188.3 | |
| 0.00 | 0.26 | 0.00 | 0.22 | 11.55 | 55.72 | 54.00 | 282.26 | 0.8133 | -283.0 | -311.3 | |
| 12.72 | 57.16 | 10.48 | 47.07 | 8.46 | 54.77 | 53.05 | 278.52 | 0.8015 | -852.1 | -317.9 | |
| 0.00 | 1.20 | 0.00 | 0.97 | 8.37 | 54.01 | 52.29 | 278.45 | 0.7935 | -592.0 | -487.2 | |
| 0.43 | 2.15 | 0.35 | 1.74 | 8.74 | 53.88 | 52.16 | 278.92 | 0.7924 | -617.2 | -495.1 | |
| 0.00 | 1.55 | 0.00 | 1.16 | 9.53 | 50.25 | 48.53 | 280.27 | 0.7533 | 473.0 | 334.6 | |
| 0.00 | 1.55 | 0.00 | 1.16 | 10.25 | 50.26 | 48.53 | 281.22 | 0.7541 | 380.0 | 242.9 | |
| 2.32 | 6.88 | 1.73 | 5.13 | 9.63 | 49.95 | 48.23 | 280.43 | 0.7500 | 567.5 | 471.4 | |
| 0.00 | 2.84 | 0.00 | 2.10 | 9.67 | 49.60 | 47.88 | 280.53 | 0.7460 | 593.0 | 536.3 | |
| 1.29 | 1.89 | 0.95 | 1.39 | 10.05 | 49.13 | 47.41 | 281.09 | 0.7411 | 382.5 | 410.7 | |
| 0.00 | 1.55 | 0.00 | 1.13 | 9.91 | 48.79 | 47.07 | 280.95 | 0.7370 | 397.0 | 266.9 | |
| 1.12 | 15.04 | 0.81 | 10.90 | 10.07 | 48.60 | 46.88 | 281.19 | 0.7349 | 482.0 | 521.2 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 10.28 | 48.55 | 46.83 | 281.48 | 0.7346 | 425.0 | 316.1 | |
| 9.89 | -12.00 | 7.16 | -12.00 | 9.77 | 48.42 | 46.69 | 280.81 | 0.7324 | 798.6 | 999999 | |
| 0.00 | 3.52 | 0.00 | 2.52 | 10.16 | 47.65 | 45.93 | 281.44 | 0.7239 | 743.0 | 552.9 | |
| 0.00 | 3.18 | 0.00 | 2.26 | 10.30 | 47.16 | 45.44 | 281.70 | 0.7182 | 599.0 | 472.1 | |
| 0.00 | 2.06 | 0.00 | 1.46 | 11.39 | 46.81 | 45.09 | 283.28 | 0.7157 | 646.0 | 527.1 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 10.74 | 46.43 | 44.71 | 282.44 | 0.7101 | 556.0 | 527.3 | |
| 0.00 | 1.03 | 0.00 | 0.71 | 10.28 | 45.79 | 44.07 | 281.90 | 0.7018 | 702.0 | 532.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
