SDO HMI 2011-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.02 | 149.06 | 12.09 | 104.70 | 28.09 | 40.87 | 39.15 | 308.20 | 0.7100 | -428.2 | -264.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

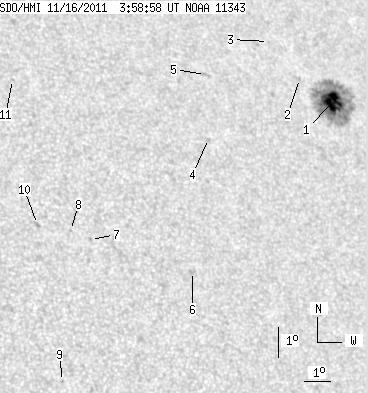

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.02 | 132.98 | 12.09 | 94.46 | 28.30 | 41.62 | 39.90 | 307.98 | 0.7189 | -1065.2 | -334.0 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 29.10 | 40.54 | 38.81 | 309.59 | 0.7130 | -612.0 | -555.8 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 30.36 | 39.76 | 38.03 | 311.60 | 0.7133 | -423.0 | -390.8 | |
| 0.00 | 1.55 | 0.00 | 1.01 | 27.24 | 35.97 | 34.25 | 310.12 | 0.6567 | 652.0 | 559.2 | |
| 0.00 | 3.44 | 0.00 | 2.31 | 29.34 | 36.63 | 34.91 | 312.36 | 0.6775 | 578.0 | 382.5 | |
| 0.00 | 3.44 | 0.00 | 2.14 | 23.00 | 34.04 | 32.31 | 305.64 | 0.6077 | 180.0 | 223.9 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 24.10 | 30.48 | 28.76 | 310.06 | 0.5760 | 475.0 | 373.1 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 24.40 | 29.82 | 28.09 | 311.09 | 0.5712 | 550.0 | 447.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 19.67 | 28.53 | 26.80 | 304.86 | 0.5195 | 742.0 | 603.9 | |
| 0.00 | 2.75 | 0.00 | 1.64 | 24.62 | 28.65 | 26.93 | 312.48 | 0.5605 | 774.0 | 580.5 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 29.35 | 28.95 | 27.23 | 318.59 | 0.6052 | 502.0 | 443.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
