SDO HMI 2011-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.34 | 59.58 | 68.76 | 268.79 | 20.11 | 85.79 | 84.07 | 289.95 | 0.9930 | -161.2 | -201.9 | |
|
previous
or next observation for the same group /

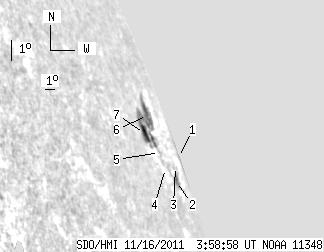

back to the solar disc SDO HMI 2011-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.95 | 0.00 | 70.36 | 19.34 | 90.19 | 88.47 | 289.26 | 0.9993 | -361.0 | -506.5 | |
| 2.49 | 5.85 | 11.12 | 27.49 | 18.79 | 85.92 | 84.19 | 288.60 | 0.9943 | -235.2 | 96.4 | |
| 0.00 | 0.86 | 0.00 | 4.72 | 19.20 | 87.20 | 85.47 | 289.04 | 0.9963 | -455.0 | -415.7 | |
| 0.00 | 1.46 | 0.00 | 5.29 | 19.27 | 84.29 | 82.57 | 289.08 | 0.9911 | -287.0 | -249.9 | |
| 0.00 | 1.81 | 0.00 | 6.43 | 19.78 | 84.21 | 82.48 | 289.59 | 0.9909 | -261.0 | -187.1 | |
| 9.89 | 45.65 | 36.61 | 154.50 | 20.93 | 84.57 | 82.84 | 290.76 | 0.9917 | -414.0 | -18.9 | |
| 6.96 | -6.00 | 21.03 | -6.00 | 20.46 | 82.57 | 80.85 | 290.28 | 0.9869 | 352.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
